$5,595,000 | Key Largo, FL

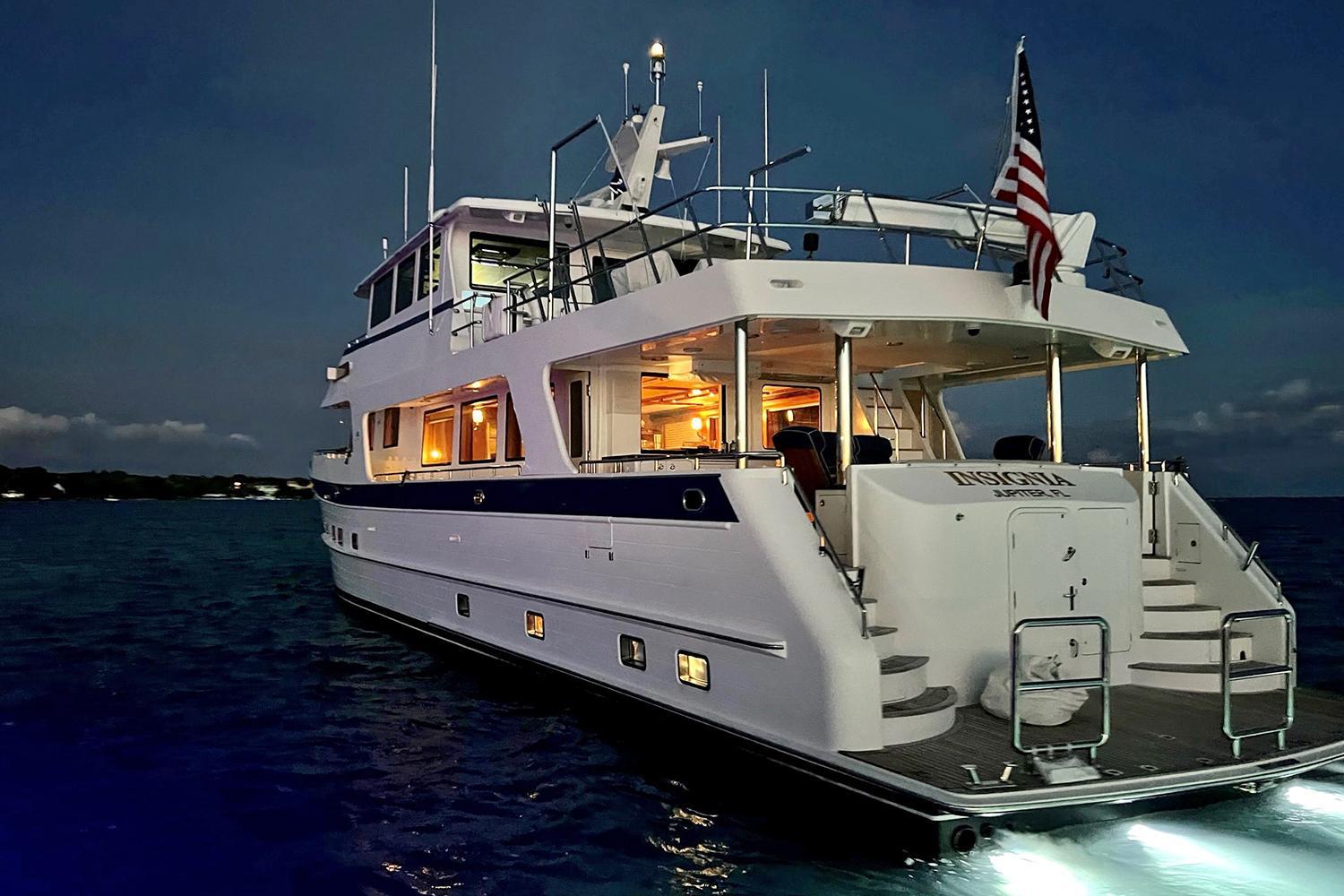

From the moment you step onto the aft deck on INSIGNIA, you realize the boat was originally built by a very knowledgeable and detailed-oriented buyer. The spacious aft deck features a large table with teak chairs. The port side cabinet houses an AC unit and custom storage with a granite counter top. The fiberglass staircase leading from the aft deck to the boat deck is easily navigated and safe.

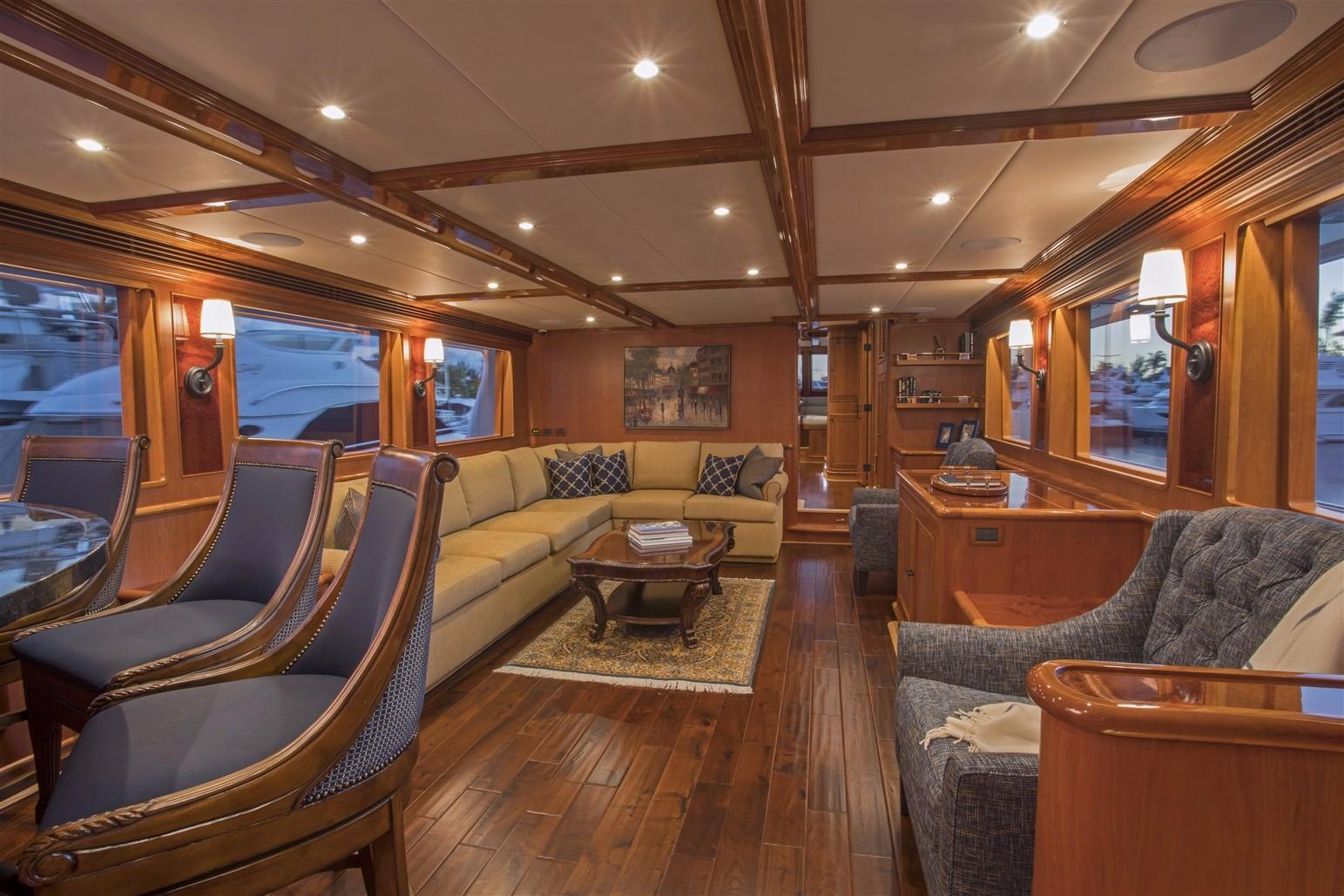

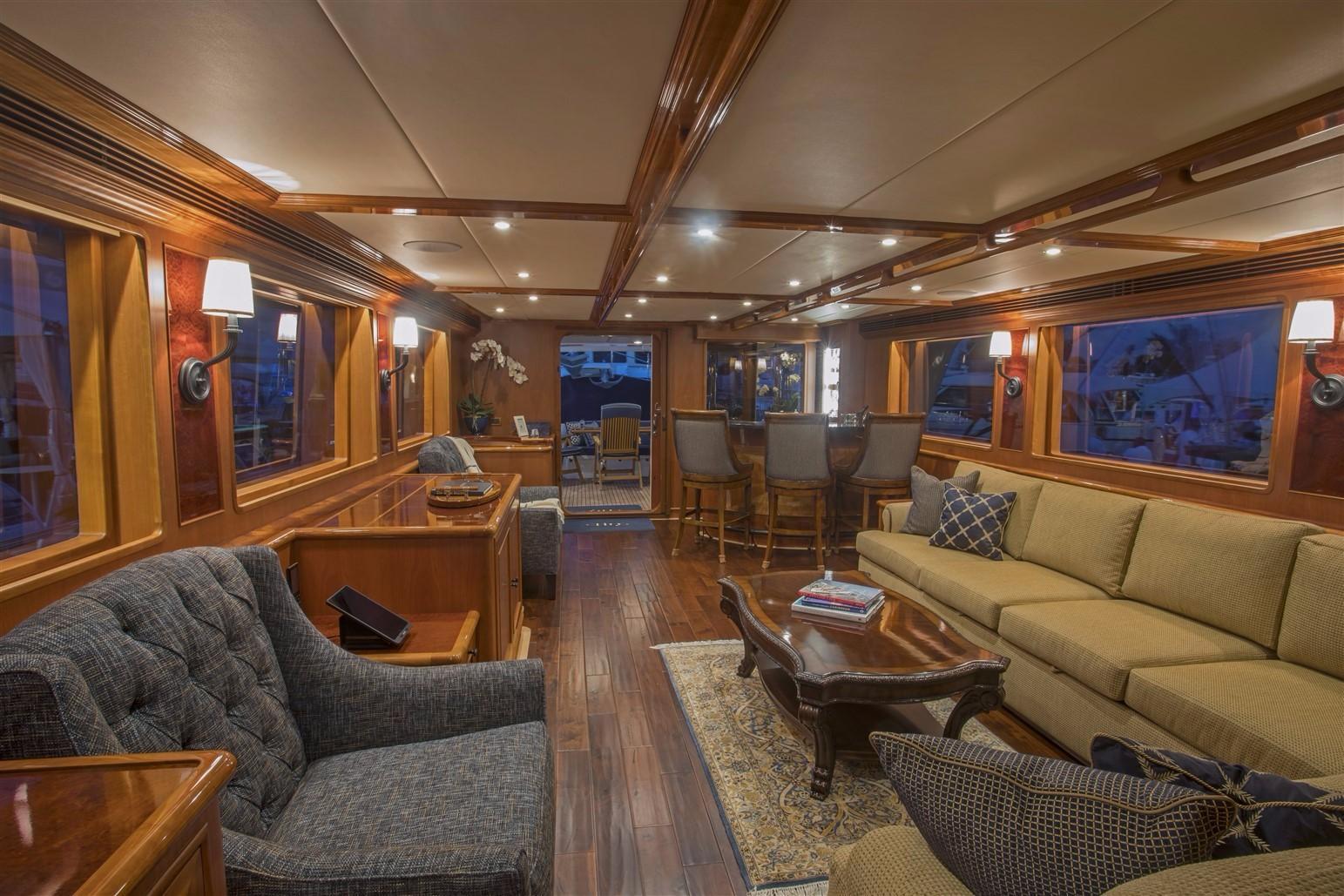

Upon entering the main salon thorough the sliding door, you can't help but notice the attention to detail from the custom bar area with built-in glass curio cabinet and ample storage to the dual overhead cherry hand rails. The high-gloss bull nose and burl counter tops are a perfect match for custom interior furniture. The hand-scraped walnut flooring throughout the boat adds an extra level of detail.

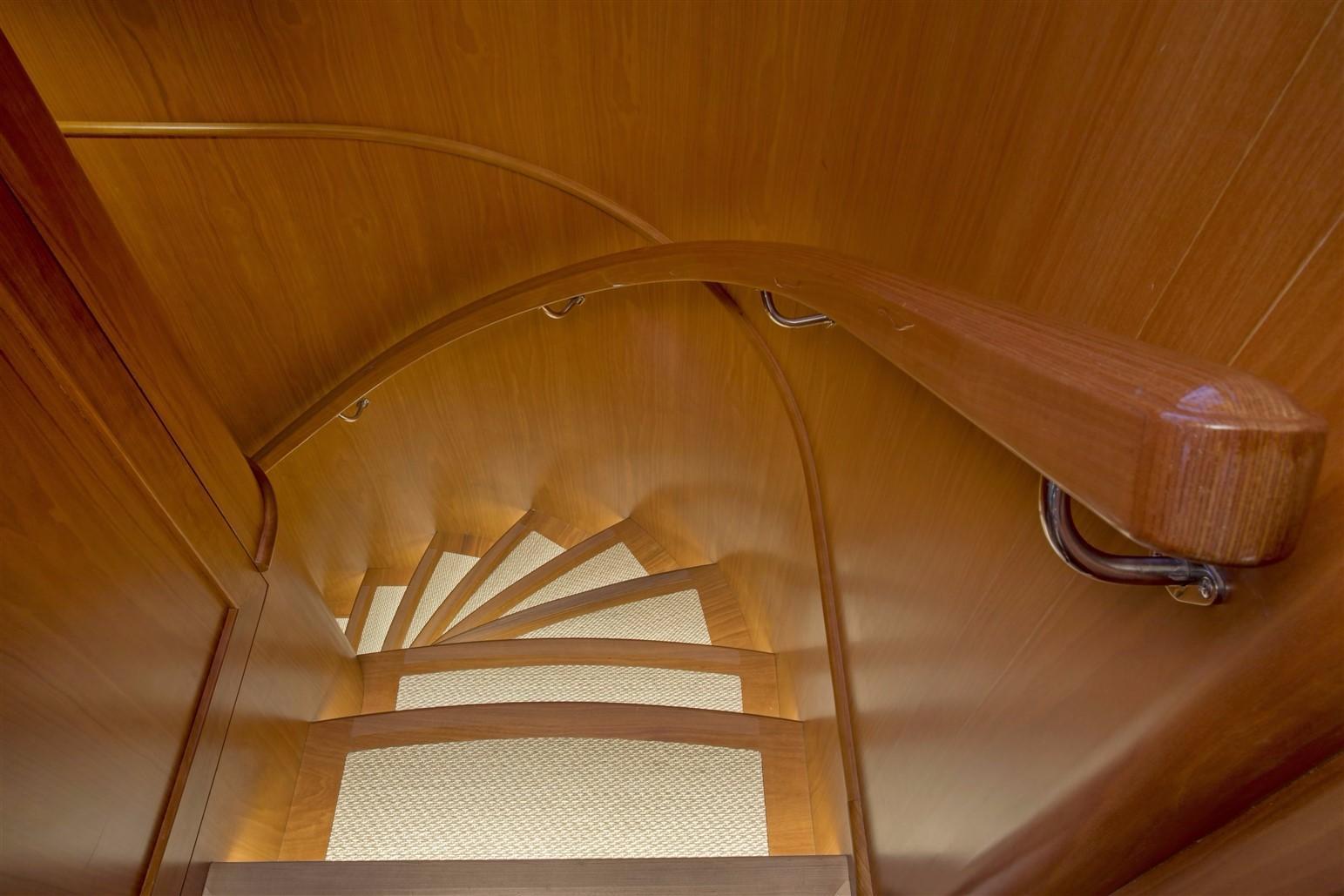

On the starboard aft corner of the salon is an internal staircase leading to the large crew quarters with a crew lounge/galley and two staterooms. Access to the air conditioned engine room can also be found here.

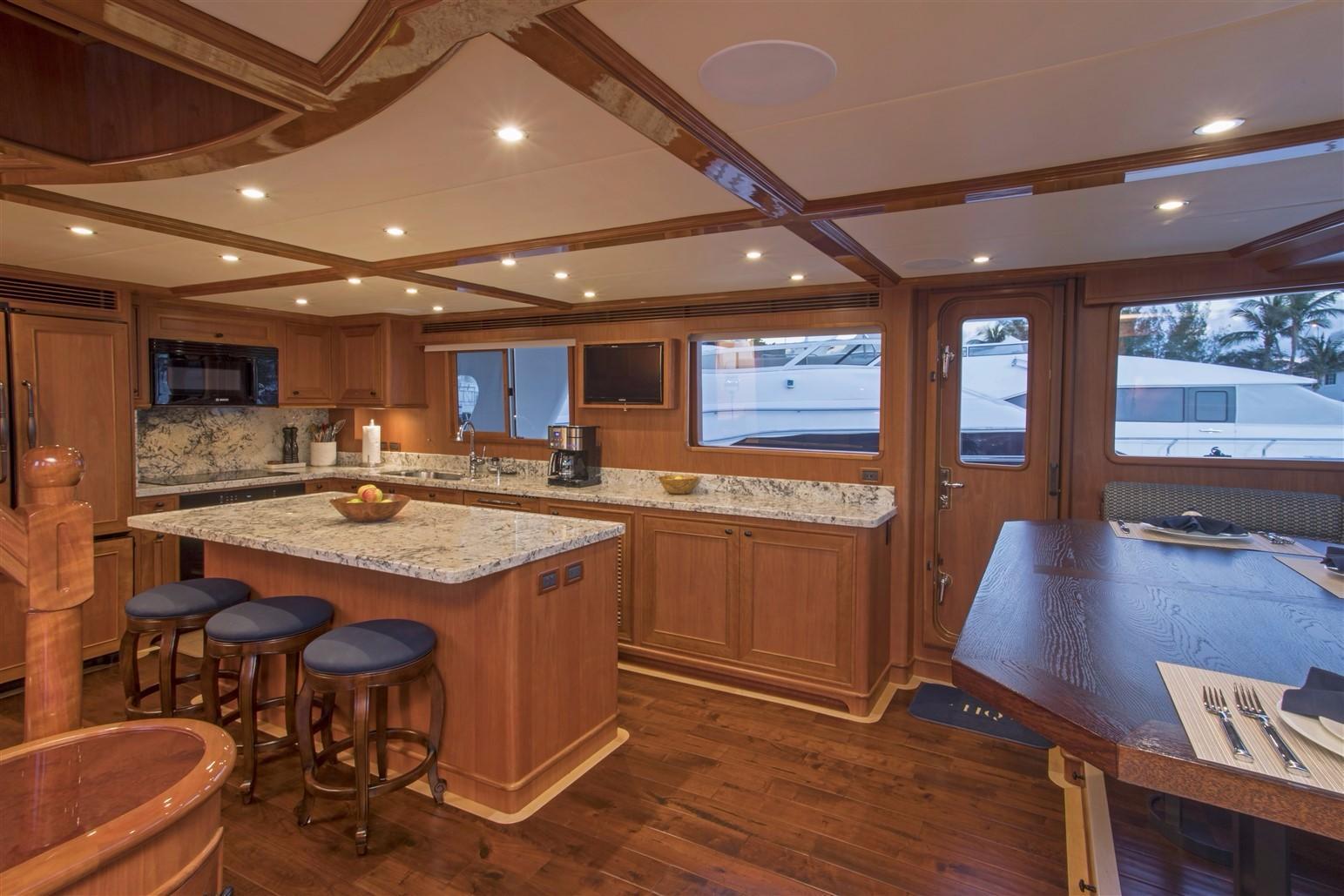

Just forward of the spacious salon is the massive country galley complete with full size appliances with custom wood paneling and granite countertops with a large island with seating for three. Port and starboard pilothouse doors lead to the walkarounds and foredeck. There is a large settee with seating for 8 forward of the island. There is also an on-deck day head with access from the galley and the starboard walkaround deck.

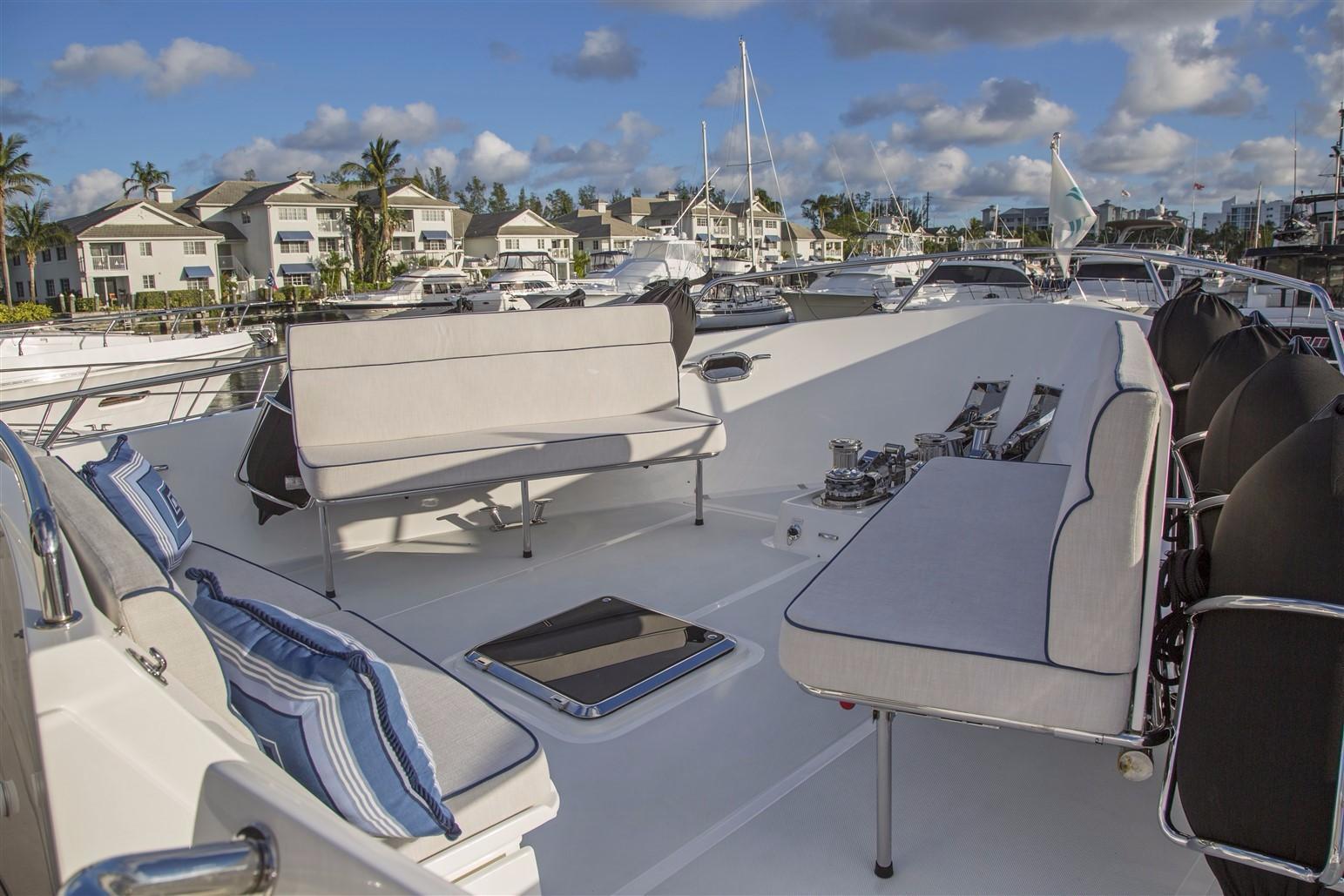

The foredeck has built-in seating in the Portuguese bridge as well as custom fold-down seating on both port and starboard sides and a removable sunshade. There are also two hydraulic, vertical windlasses with both fresh and raw water wash downs.

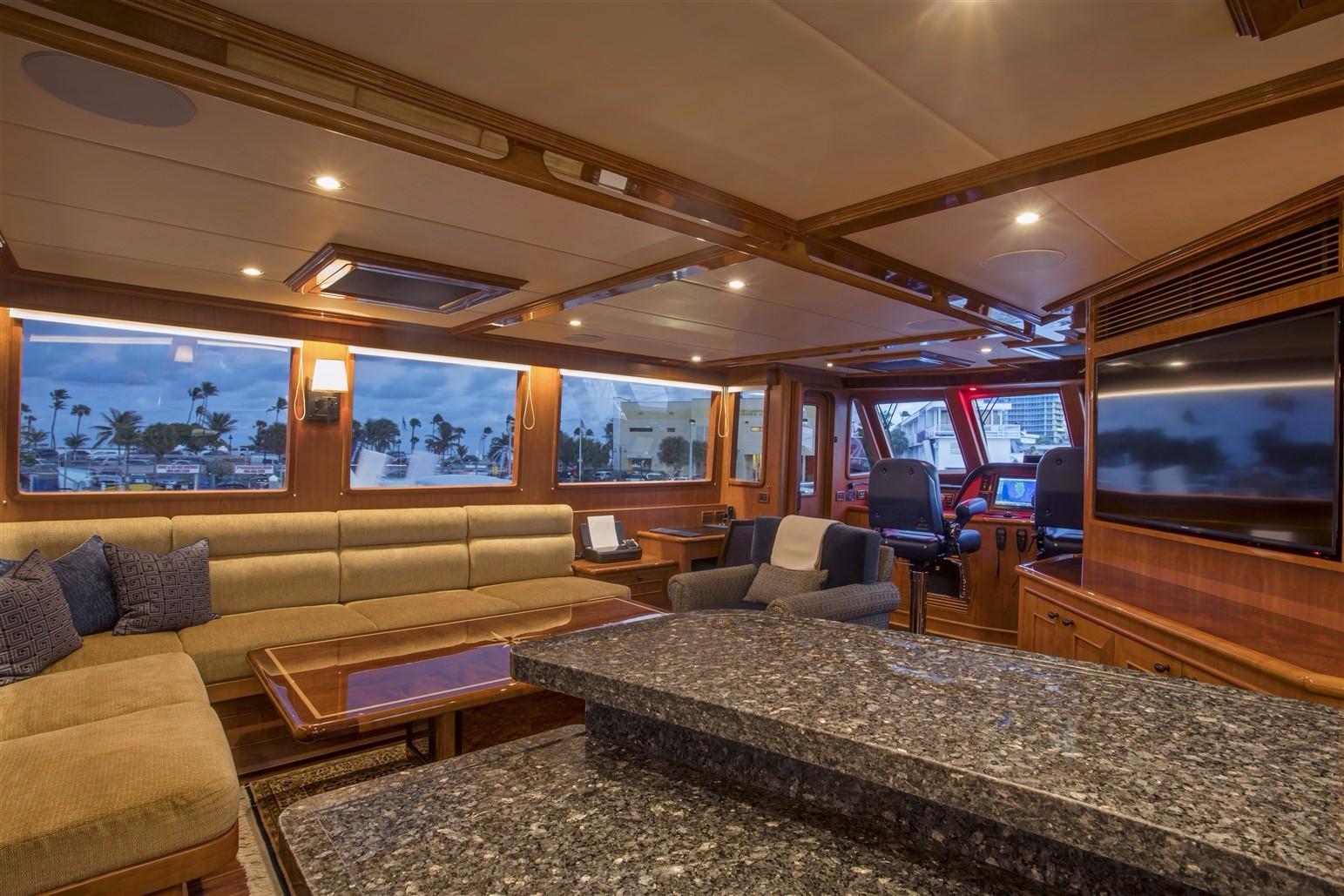

The skylounge is accessed from a stairway in the galley on the starboard side. The pilothouse is the command center of the yacht with full Garmin navigation systems with 4 redundant screens and backup systems. Large Caterpillar engine monitors are located on the right side of the helm along with several multi-function displays. There is also an on-deck head along with port and starboard pilothouse doors to access the Portuguese bridge seating.

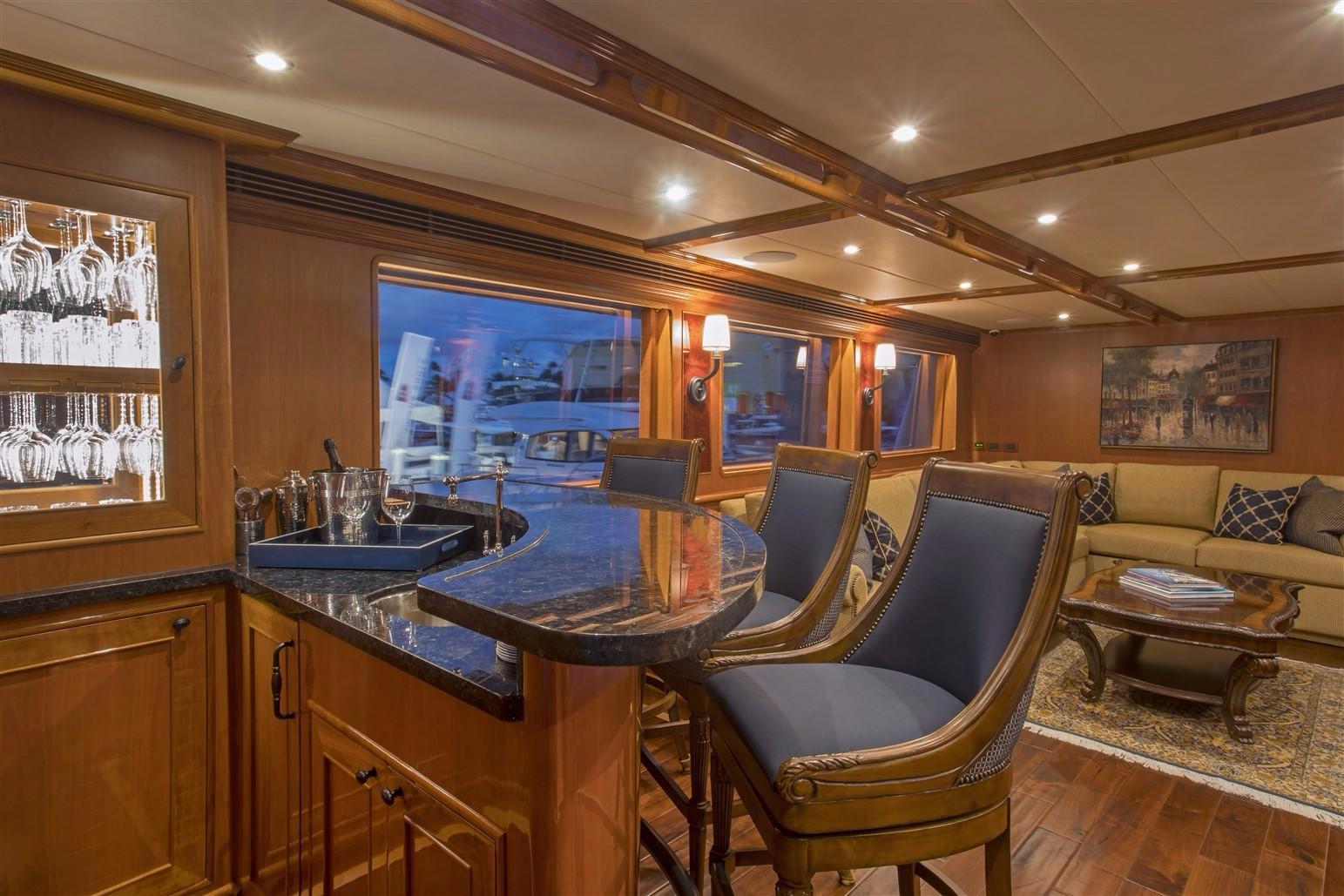

Aft of the helm is a beautiful second salon with a full bar, entertainment system, and seating for entertaining or just relaxing. The large boat deck sports a full outdoor galley, sink, and refrigeration. There is also a beautiful teak table and chairs with an overhead sunshade for outdoor dining.

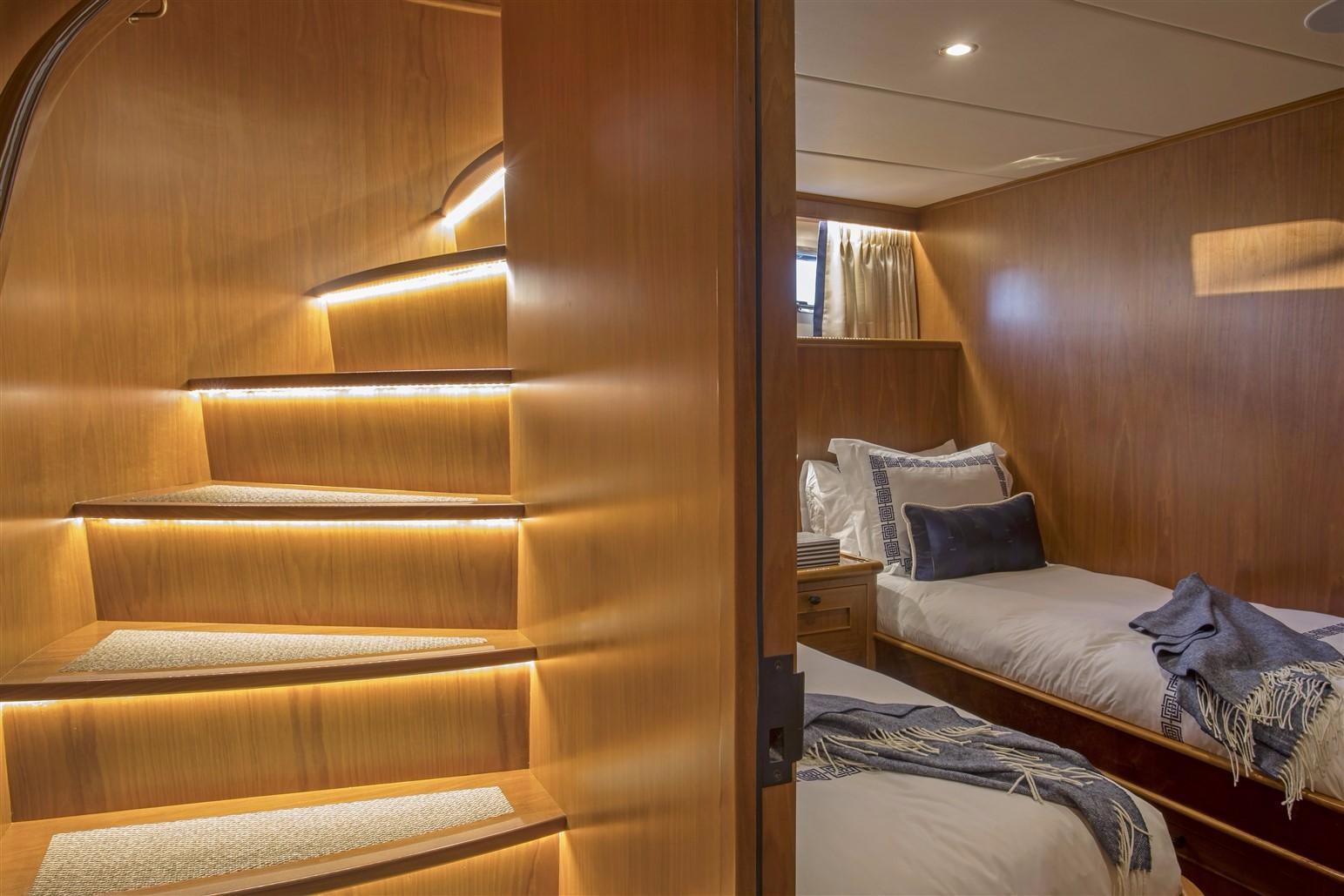

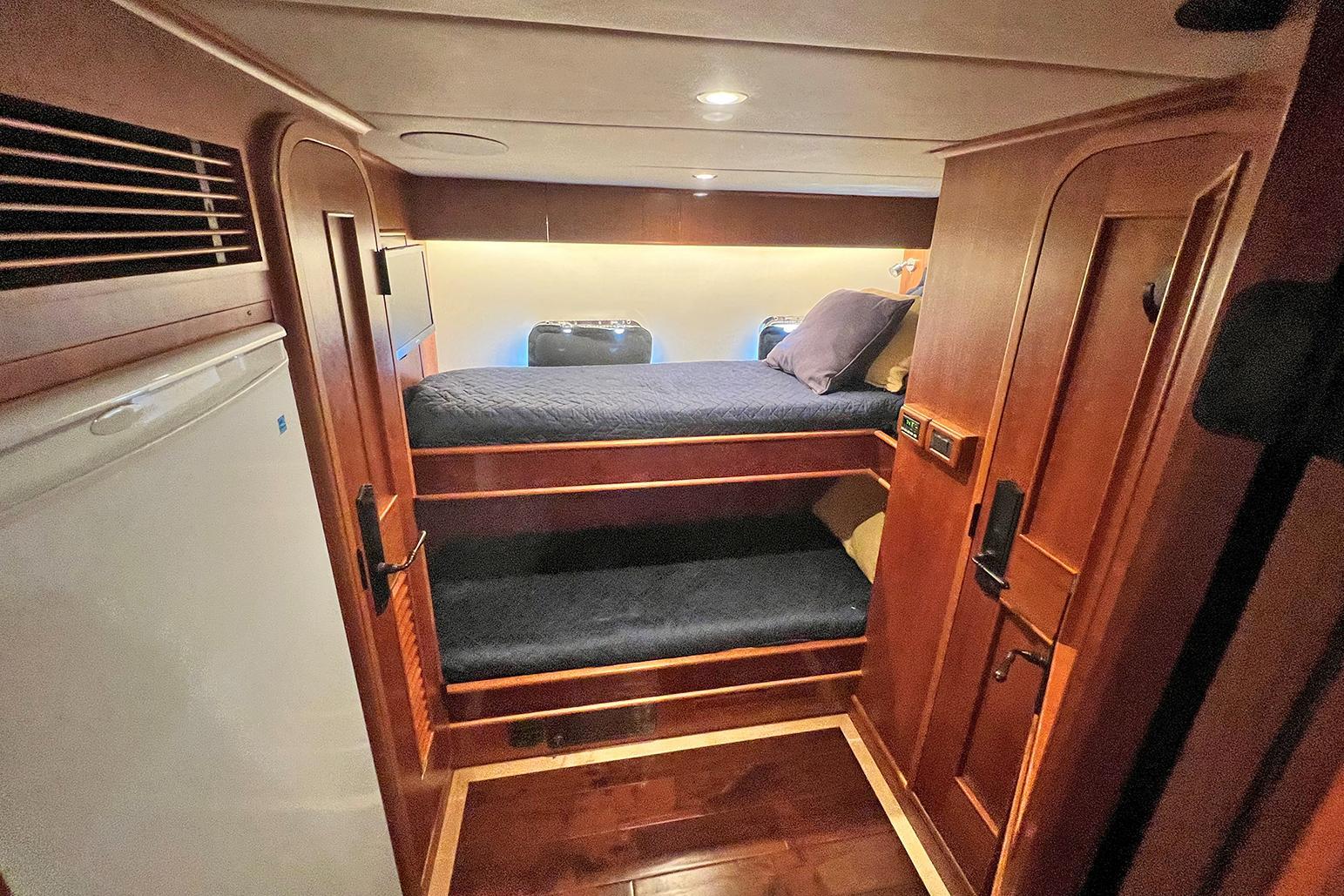

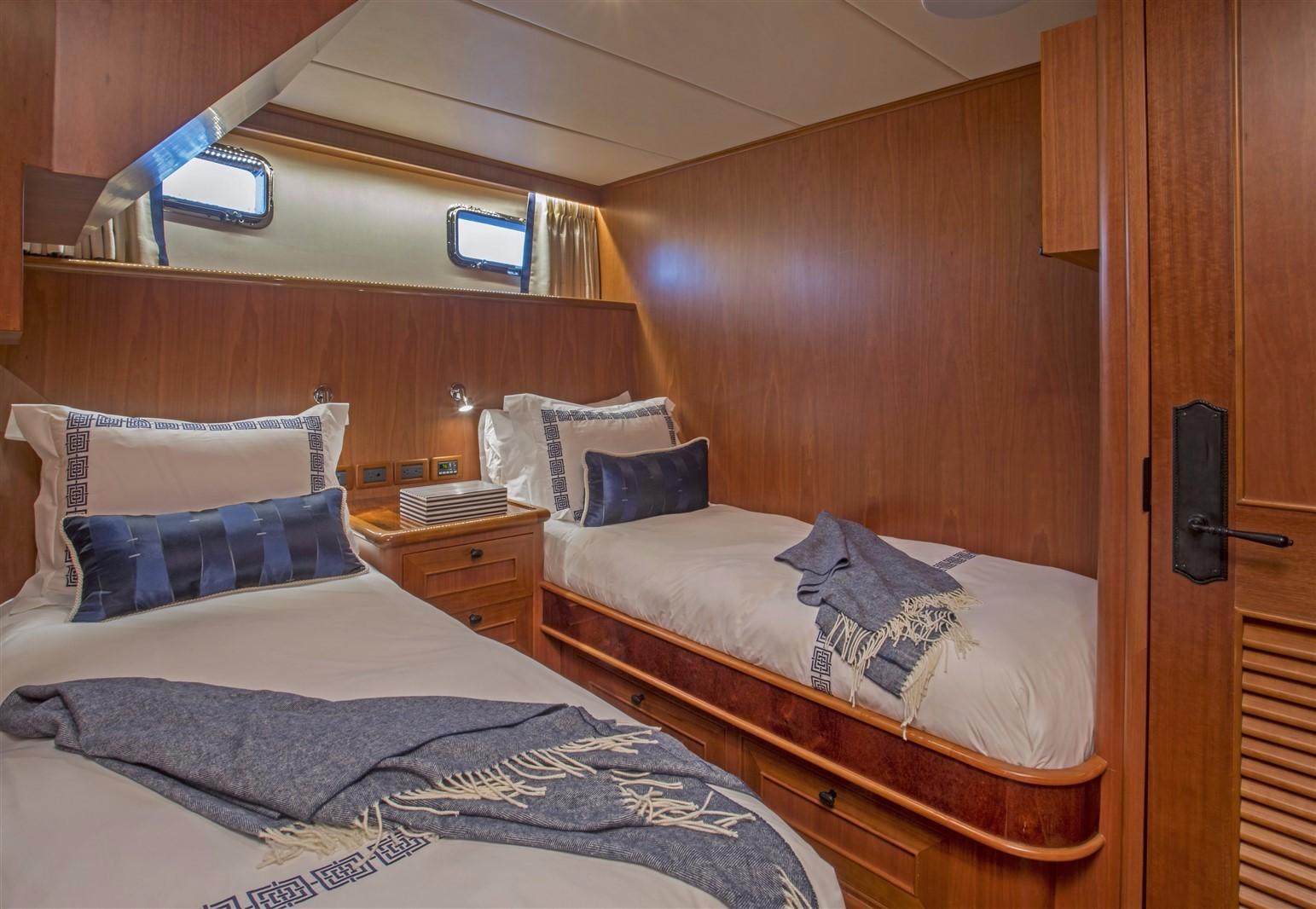

The lower staterooms are accessed from a stairway in the forward starboard side of the galley. The forward VIP has ample hanging locker space along with an ensuite head and shower. Just aft of the VIP stateroom is the second port guest stateroom with twin berths and ensuite head and shower.

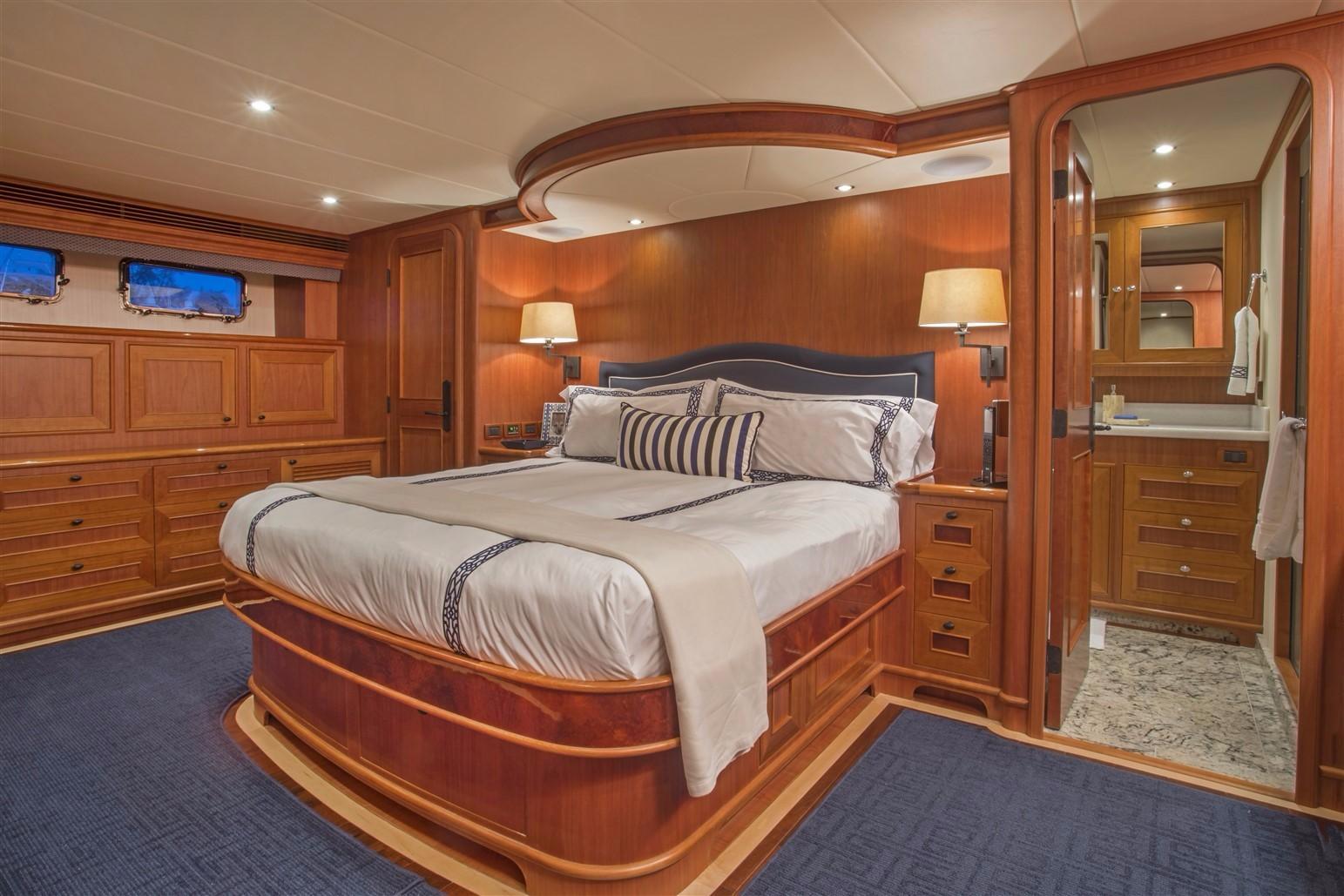

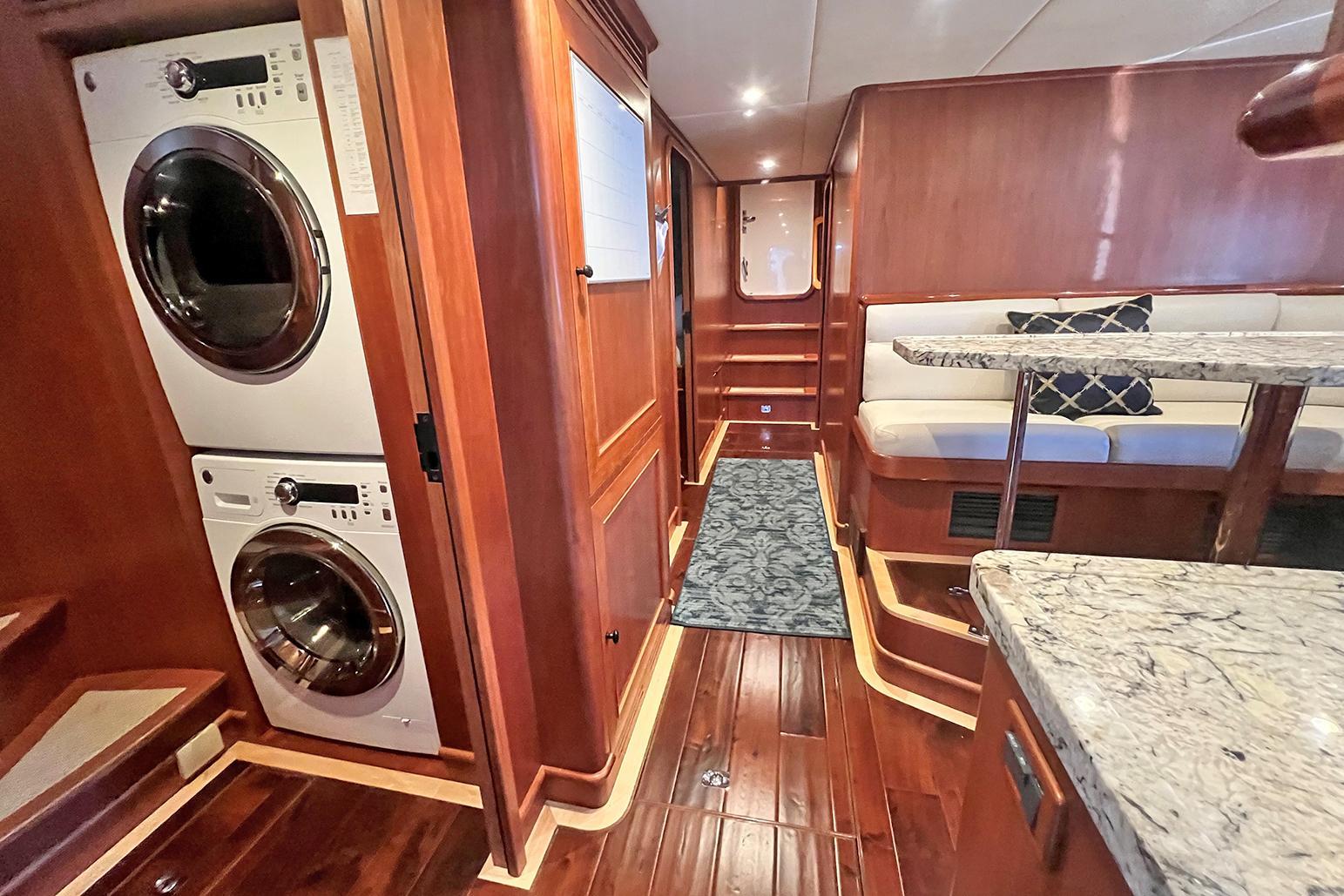

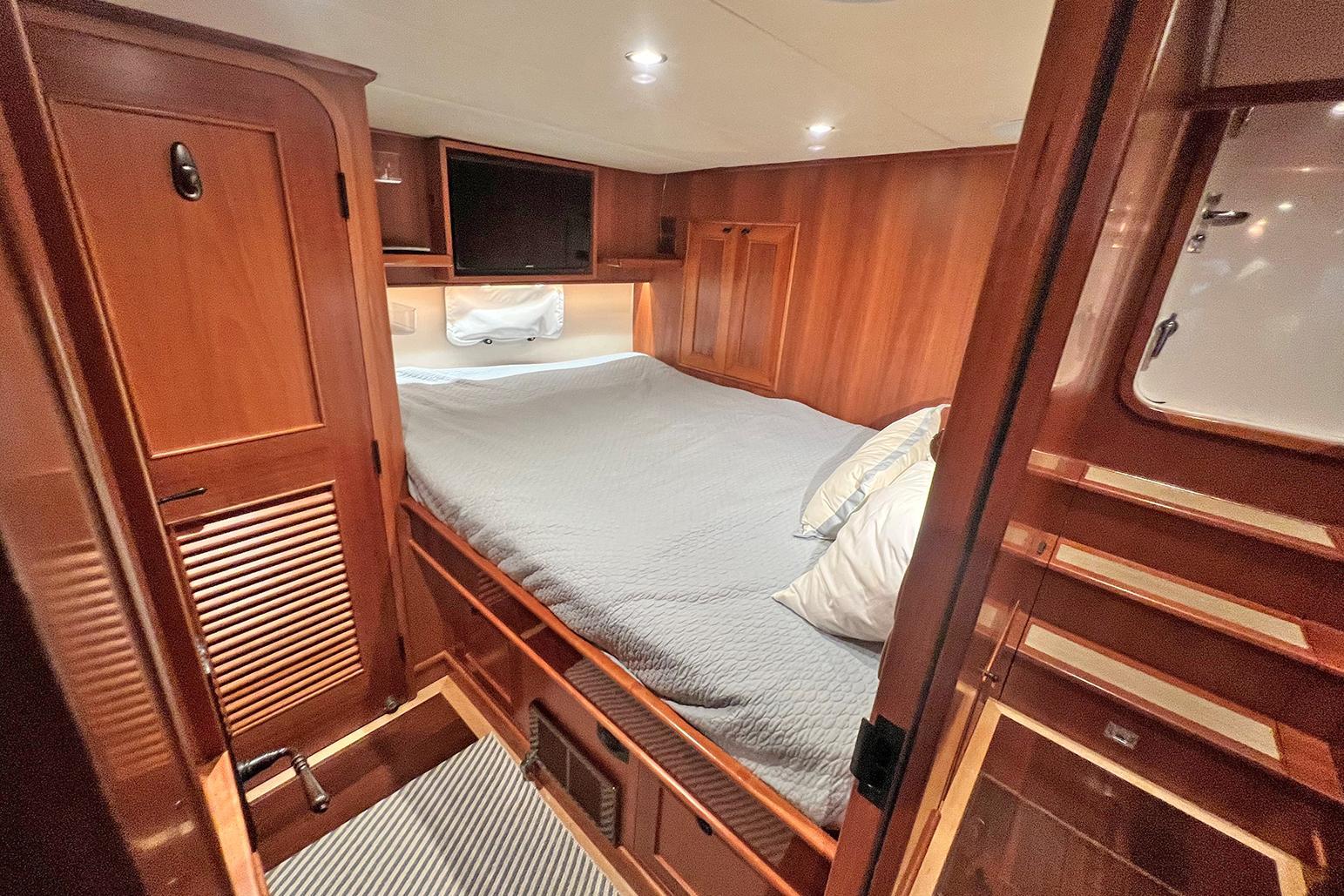

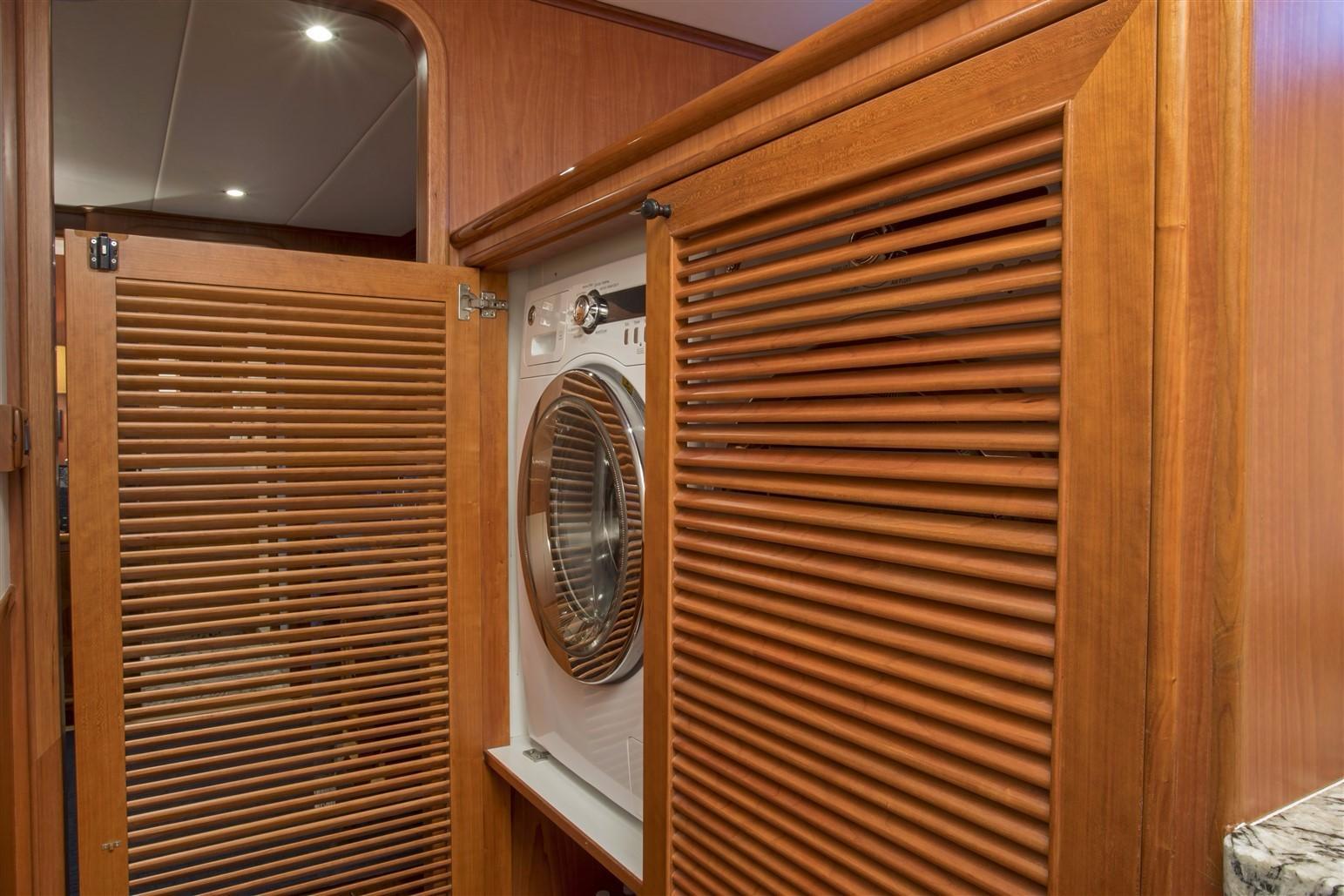

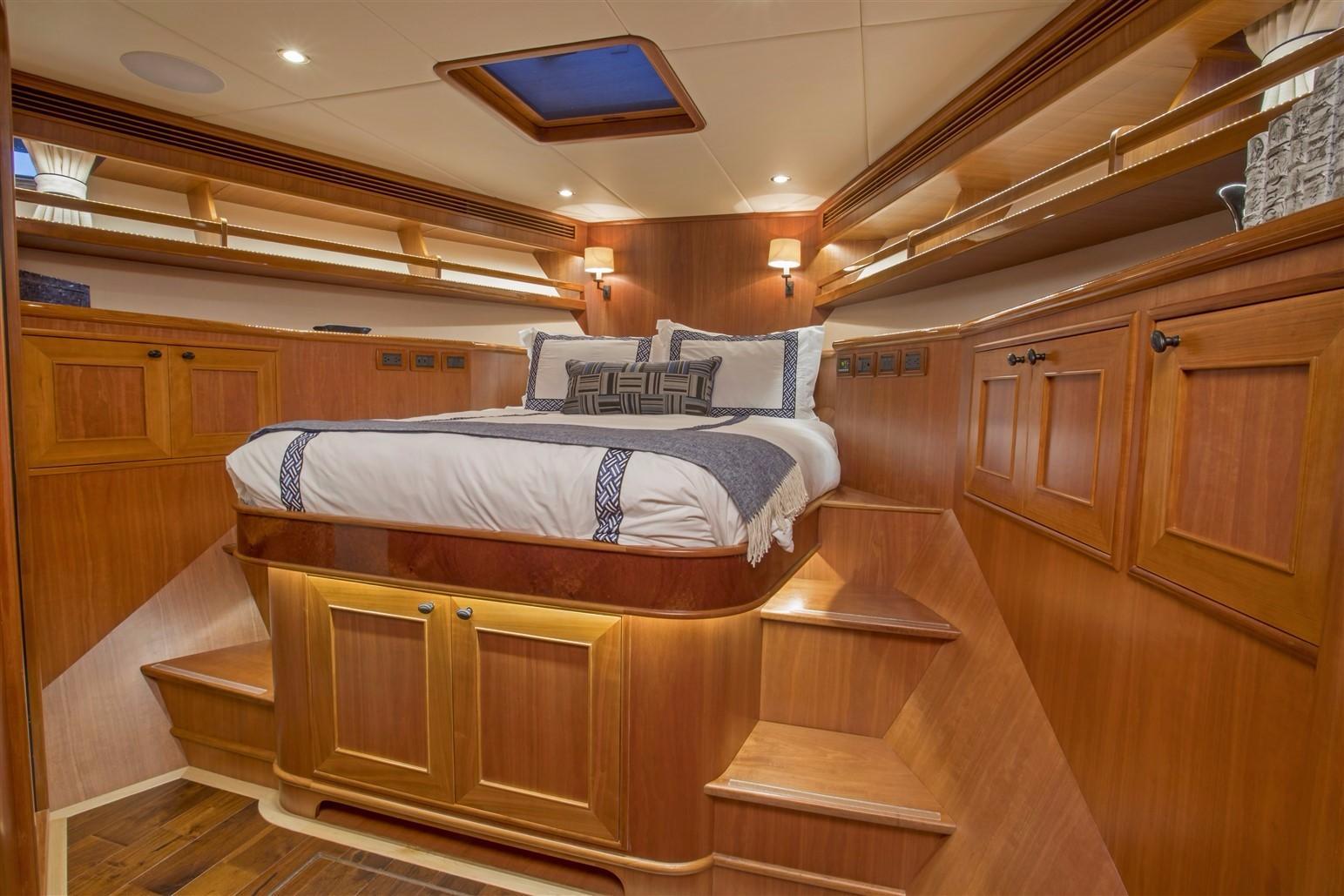

The master is entered from a private hallway that houses the washer/dryer and counter for folding laundry. The master stateroom has a centerline king berth with a full head and shower on the starboard side with honed granite flooring and polished counter tops. On the starboard side of the berth is a large walk-in locker and a full bank of drawers for storage.

• Hand laid-up FRP hull with PVC core sandwich construction above water line
• Solid laminate, commensurate for hull size, made in female mold
• Vinylester barrier lamination for osmosis protection
• Simulated planked hull
• Full length longitudinal engine stringers and athwartship stringers
• Gel coated finish above waterline
• Two (2) coats of black antifouling paint over five (5) coats of epoxy primer below waterline
• Brand new bottom paint
• Integrally molded rub rails with stainless steel capping
• Full length keel extends below running gear
• Stainless steel rudders and struts with two (2) Seatorque enclosed drive shaft systems
• CE-approved stainless steel portlights
• Boat construction from only 3 major molds
• Divinycell PVC cored construction with cook gelcoat
• All deck and hull area hardware attachments are finished with solid lamination – no coring
• Bilge area finished smooth and coated with bright white epoxy paint
• Windows with 3/8” tempered safety glass in salon and ½’ tempered safety glass in pilothouse
• Stainless steel breast plate on bow
• Aristo Blue sheared hull stripe
• Sandwich plywood in salon, galley, country kitchen and sky lounge and 1/8" sound control material under engineered floor at skylounge, country kitchen and salon
• 3M fiber matting: salon overhead, galley overhead, country kitchen overhead, VIP cabin, starboard guest cabin, forward hall, master cabin and crew area
• Quiet Roll™ integrated spray rail system

• Air conditioned aft deck with teak decking
• Port side cabinet with a new refrigerator and a granite countertop
• Built-in extended swim platform with teak decking
• Armstrong 4-step dive ladder on transom
• 2” 316 stainless steel removable safety rails on swim platform
• Four (4) Aqualuma underwater lights
• Stairway built-in to port and starboard side from swim platform to aft deck with wing gate doors
• Aft deck FRP bench seating with Stamoid covers with storage beneath
• Exterior furniture fabric for aft deck and Portuguese seats

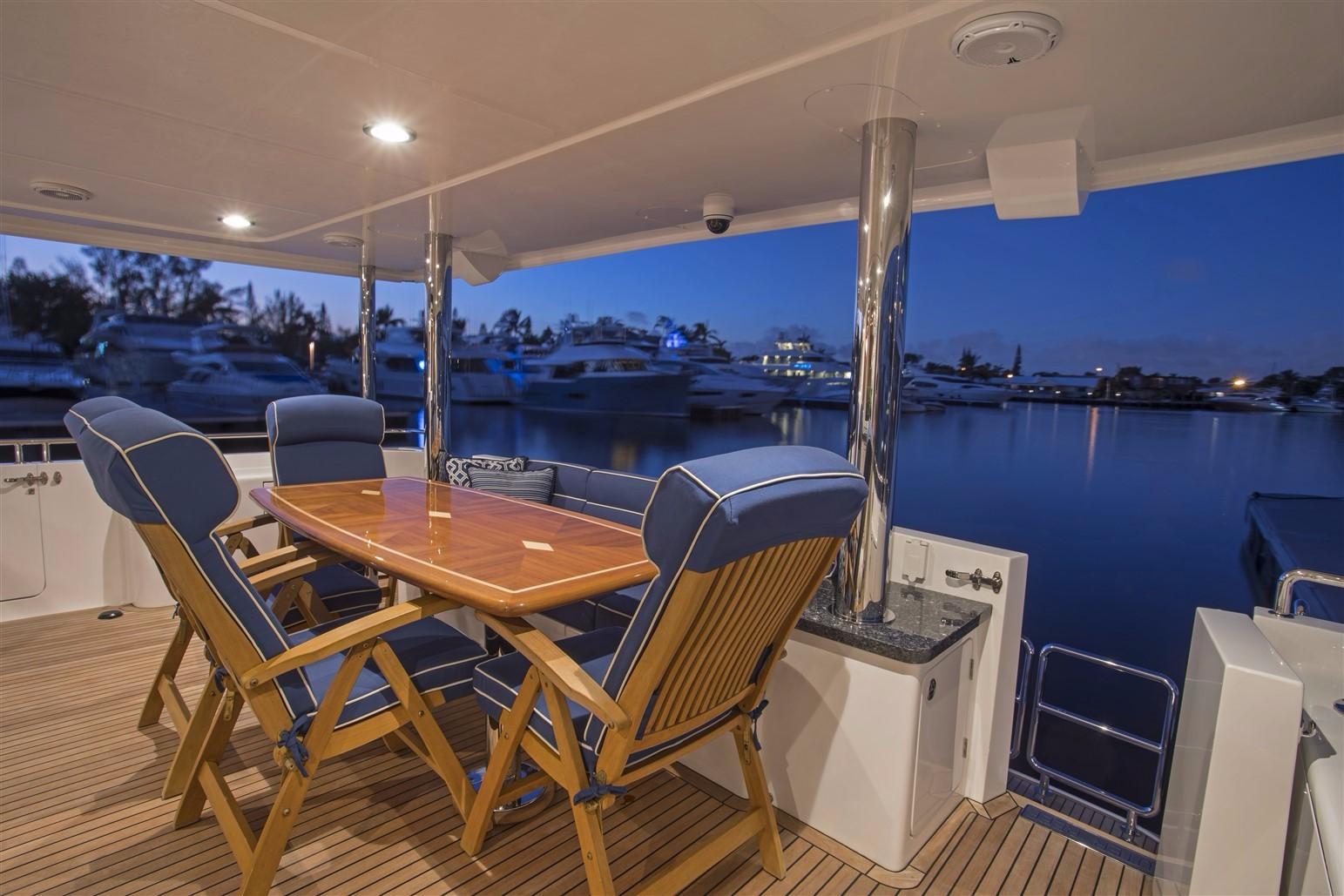

• Sliding aft deck table – teak with stainless steel bases
• Built-in FPR stairway from aft deck to boat deck with sliding hatch and stainless steel rails
• FRP sliding door to salon with glass window top and bottom and phantom screens
• FRP weather tight door on transom
• Transom shower in recessed box with hot and cold water supply
• Fresh water wash down outlet
• Shorepower inlets for 110v/220v 60hz
• Two (2) Glendinning 100 amp cable masters with 100’ of cable on transom
• Glendinning electronic engine controls via hand held remote
• Two (2) Maxwell VC1500c capstains (port and starboard)
• TV/cable outlet
• 316 Stainless steel heavy duty cleats secured to stainless steel backing plates inside bulwarks
• Deck scuppers piped out through transom at boot stripe
• 316 stainless steel handrail to and from aft deck
• Additional storage on transom
• LED overhead lighting

• Molded with teak decking
• Stainless steel handrails alongside decks
• Weather-tight doors opening into pilothouse port and starboard with phantom screens
• House side fixed windows with tinted tempered glass
• Two (2) sets of 316 stainless steel spring-line chocks per side
• Four (4) 316 stainless steel hawser holes with stainless steel cleats per side recessed in bulwarks
• Fuel fill fittings for tanks recessed into house side
• Life ring recessed into starboard house wall
• 316 stainless steel overhead safety rails
• LED overhead lighting

• Portuguese bridge molded with teak decking
• Locker doors in aft face of Portuguese bridge
• 316 Stainless steel  handrail on top of Portuguese bridge
• Hinged door through Portuguese bridge to foredeck
• Glendinning plug in receptacle
• ½” Clear tempered glass in forward facing windshields
• Windows are fixed with FRP recessed frames - no FRP trim around for easy removal and installation of glass

• Foredeck with grey non-skid surface
• Forward-facing seating with a sun bed extension with Stamoid covers
• Port and starboard seating with Stamoid covers
• Stainless steel fenderholders behind port and starboard settees
• Awning with post holders
• 316 Stainless steel CE-approved skylight/emergency hatch from the VIP stateroom below
• 316 Stainless steel rail on bulwarks increasing in width going forward
• 316 Stainless steel stanchions to support handrail
• Deck lockers forward either side of anchor platform finished in white epoxy paint
• 316 Stainless steel anchor chute/roller at bow
• 110 lb plow-type polished stainless steel anchor
• Additional 132lb Ultra anchor

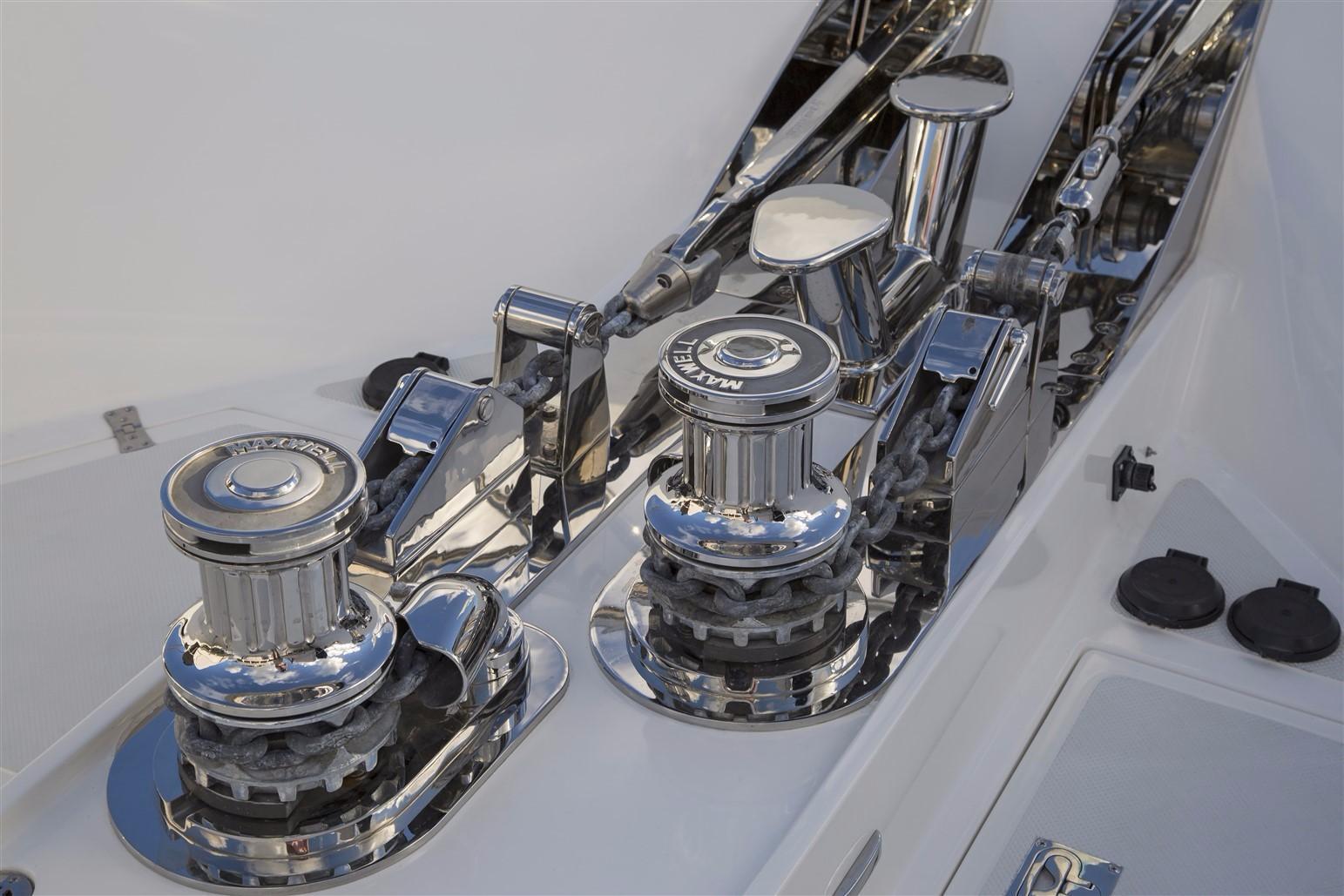

• Two (2) Maxwell VWC-4000 hydraulic vertical windlasses (recently rebuilt) and dual anchor rollers, 300' of 1/2" ht chain with snubber bridal with chafe eye, stainless steel swivels and two chain lockers and Stamoid cover
• Raw water pump and anchor/chain washing system
• Salt water wash down pump with outlet
• Fresh water wash down with outlet
• Salt water and fresh water 316 stainless steel faucets inside foredeck lockers
• Deck drains plumbed to boot-stripe to prevent black streaks

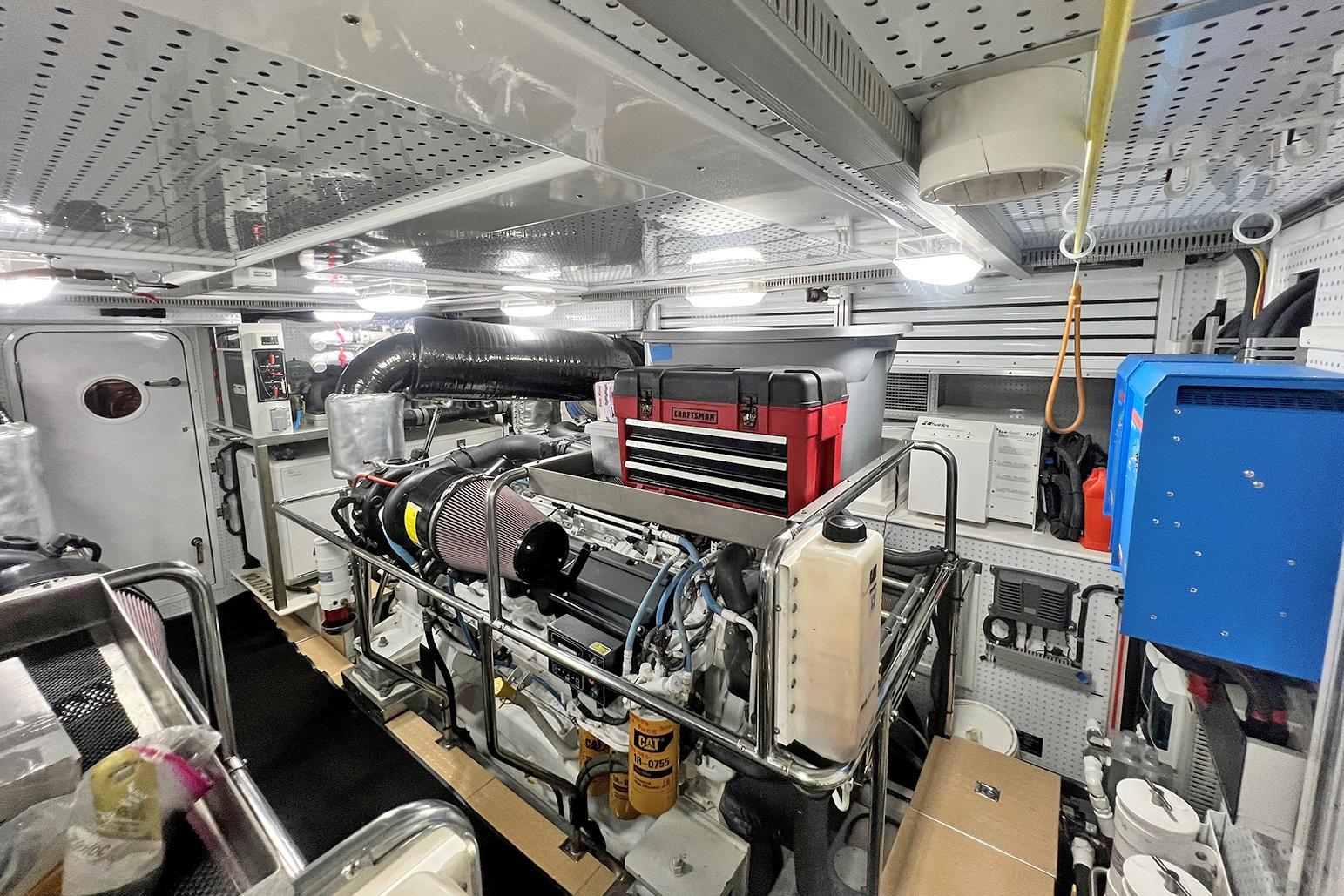

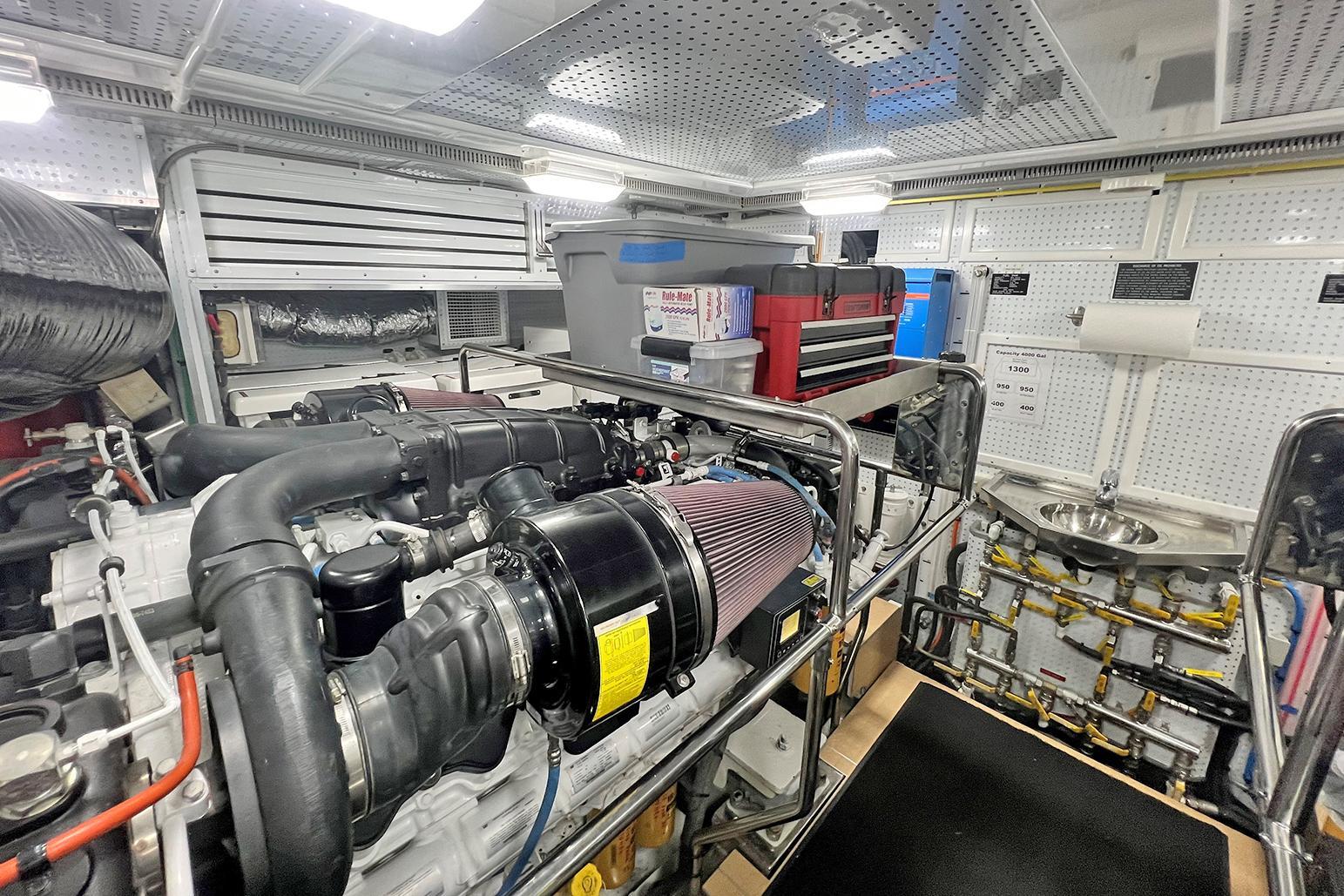

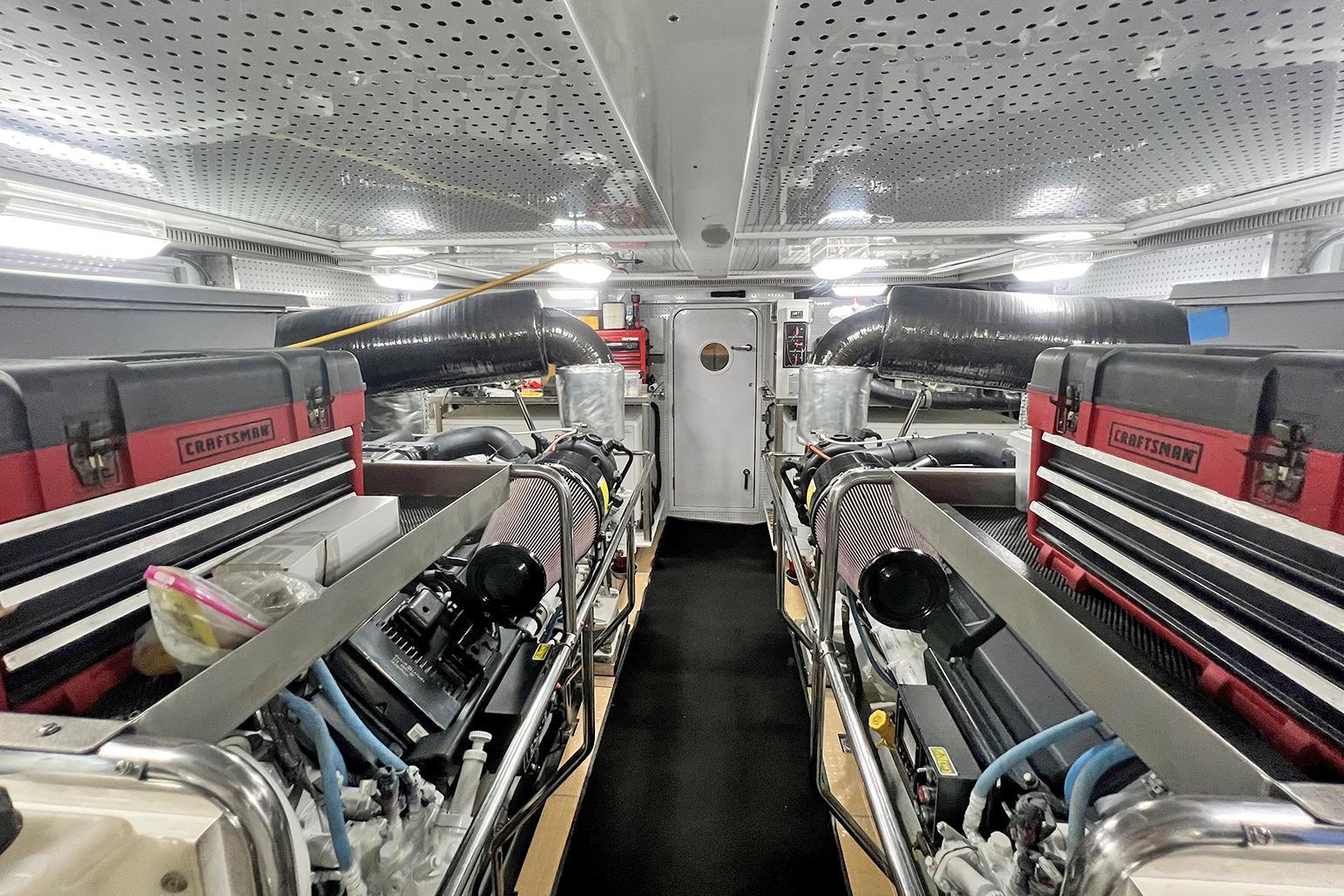

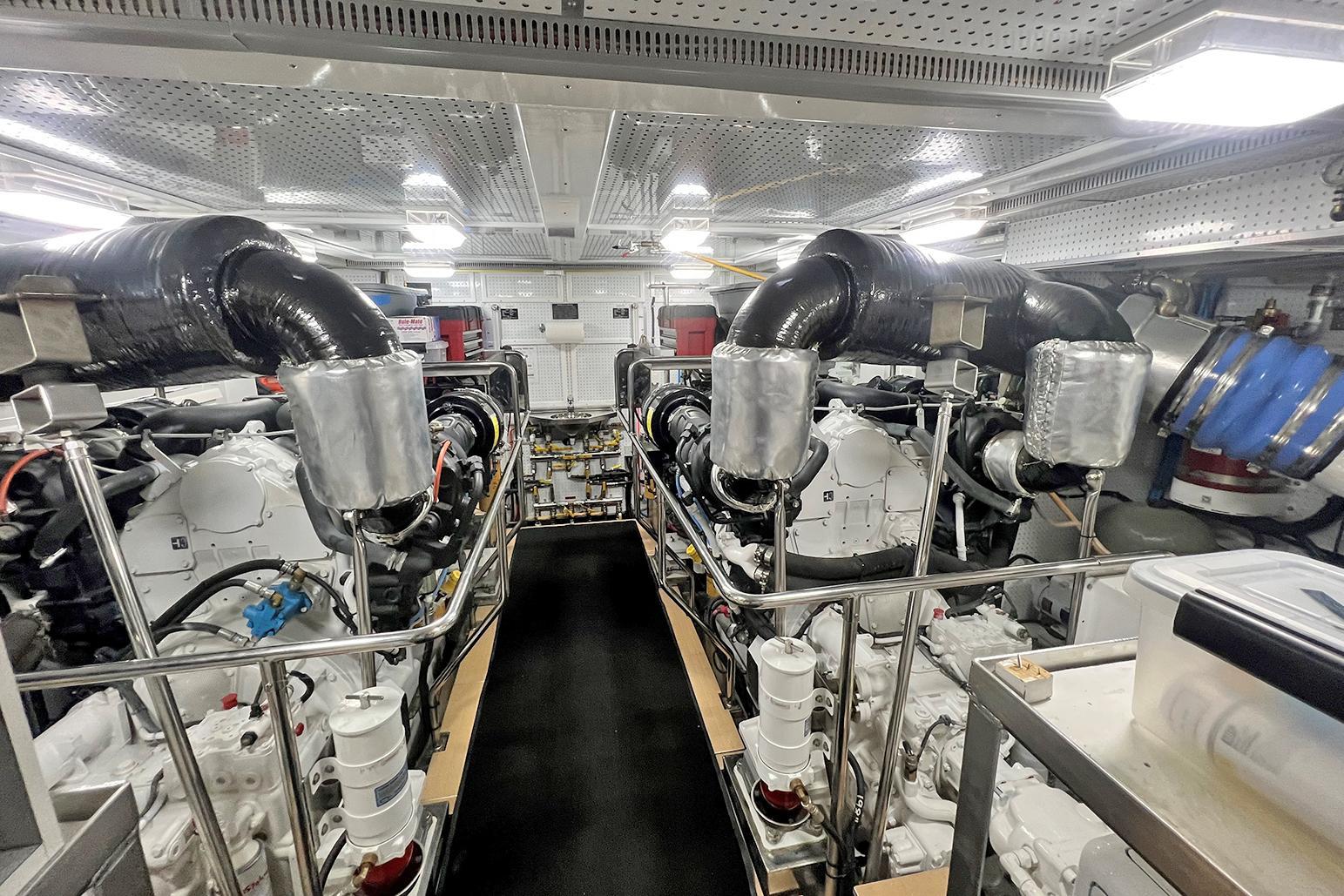

• Acoustically insulated stand-up engine room lined with sound absorbing material
• Edura beige coin dot flooring

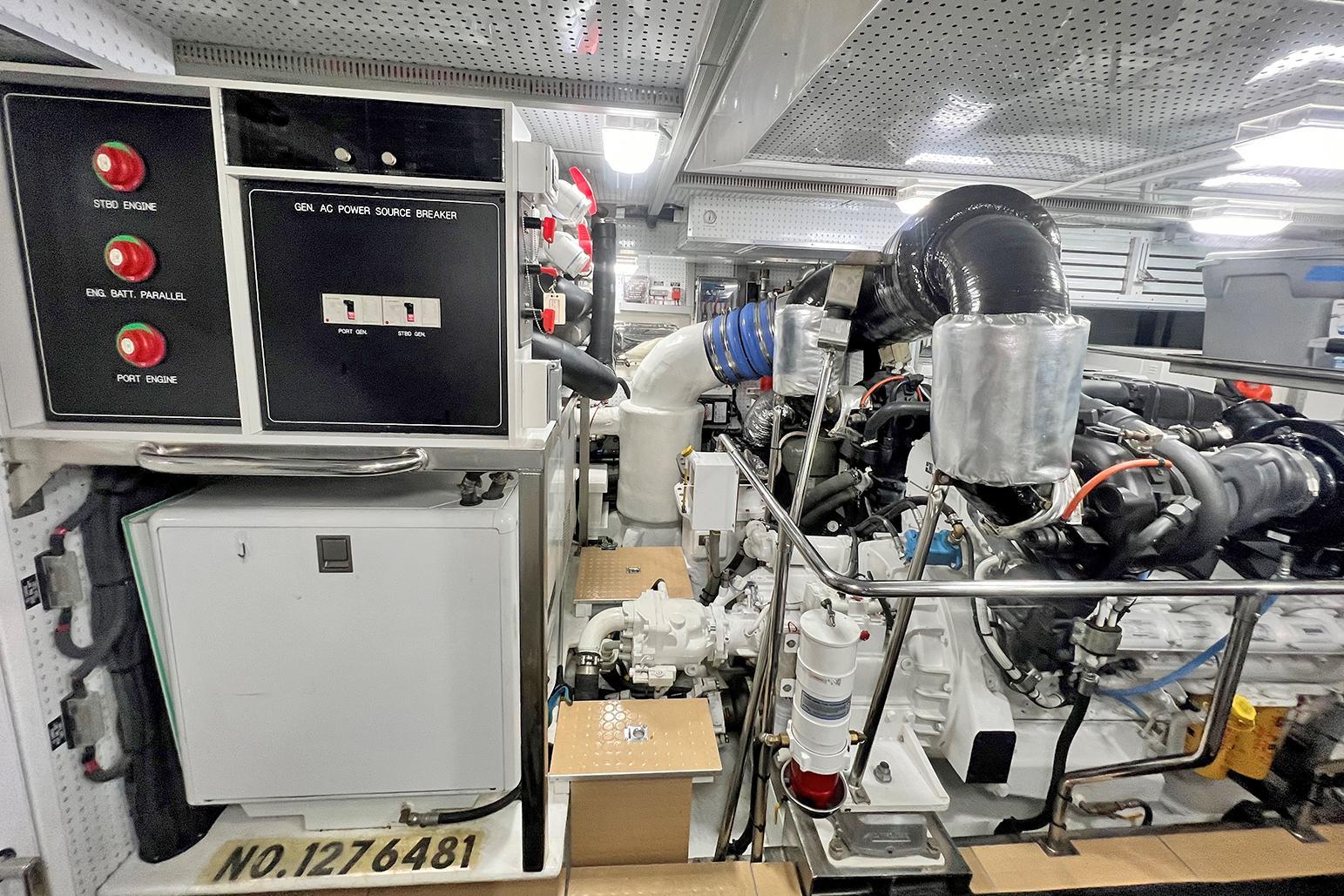

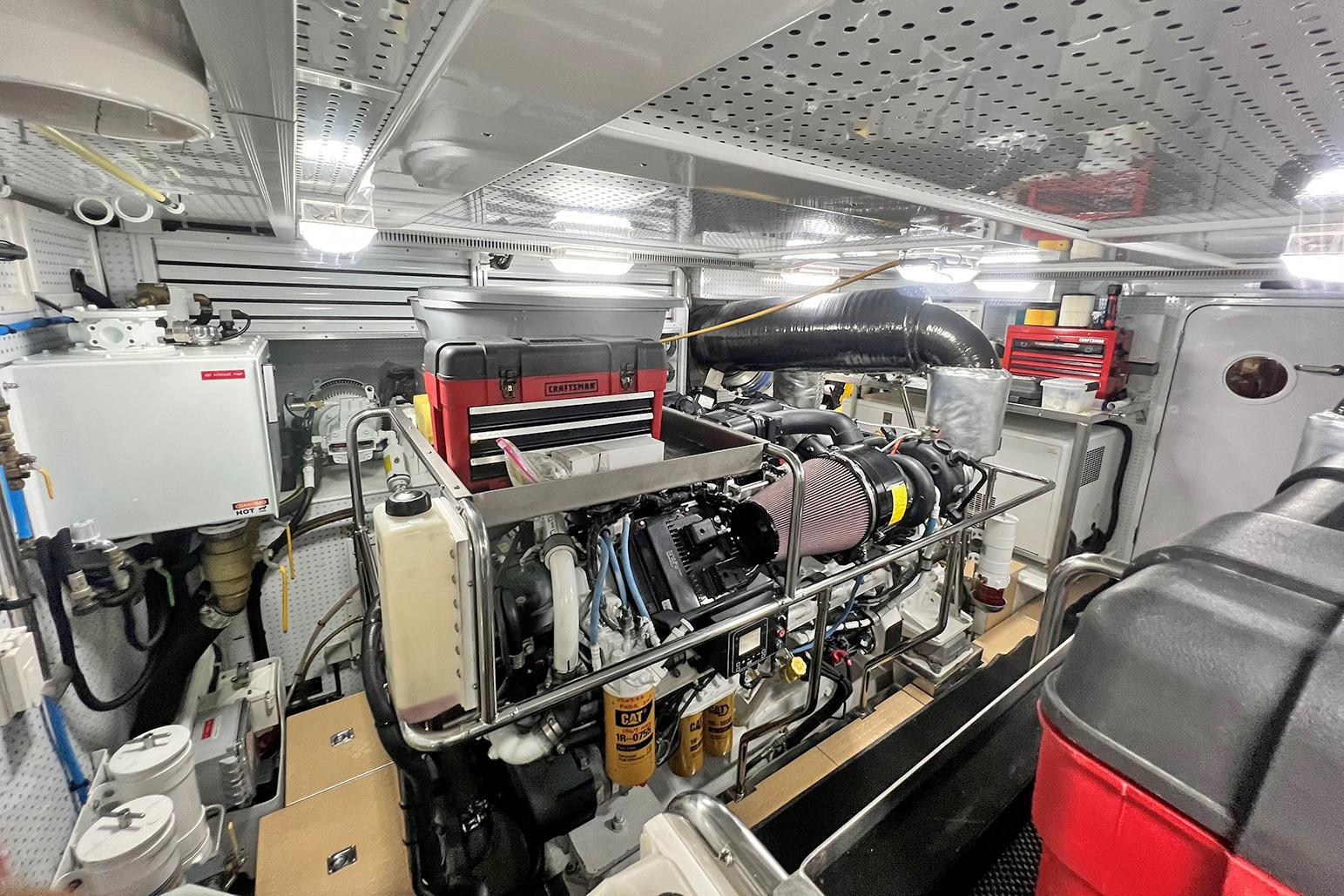

• Twin Caterpillar C-32 (1600 hp) diesel engines with ZF transmissions
• Fiberglass drip pans under engines
• Stainless steel removable work benches over engines

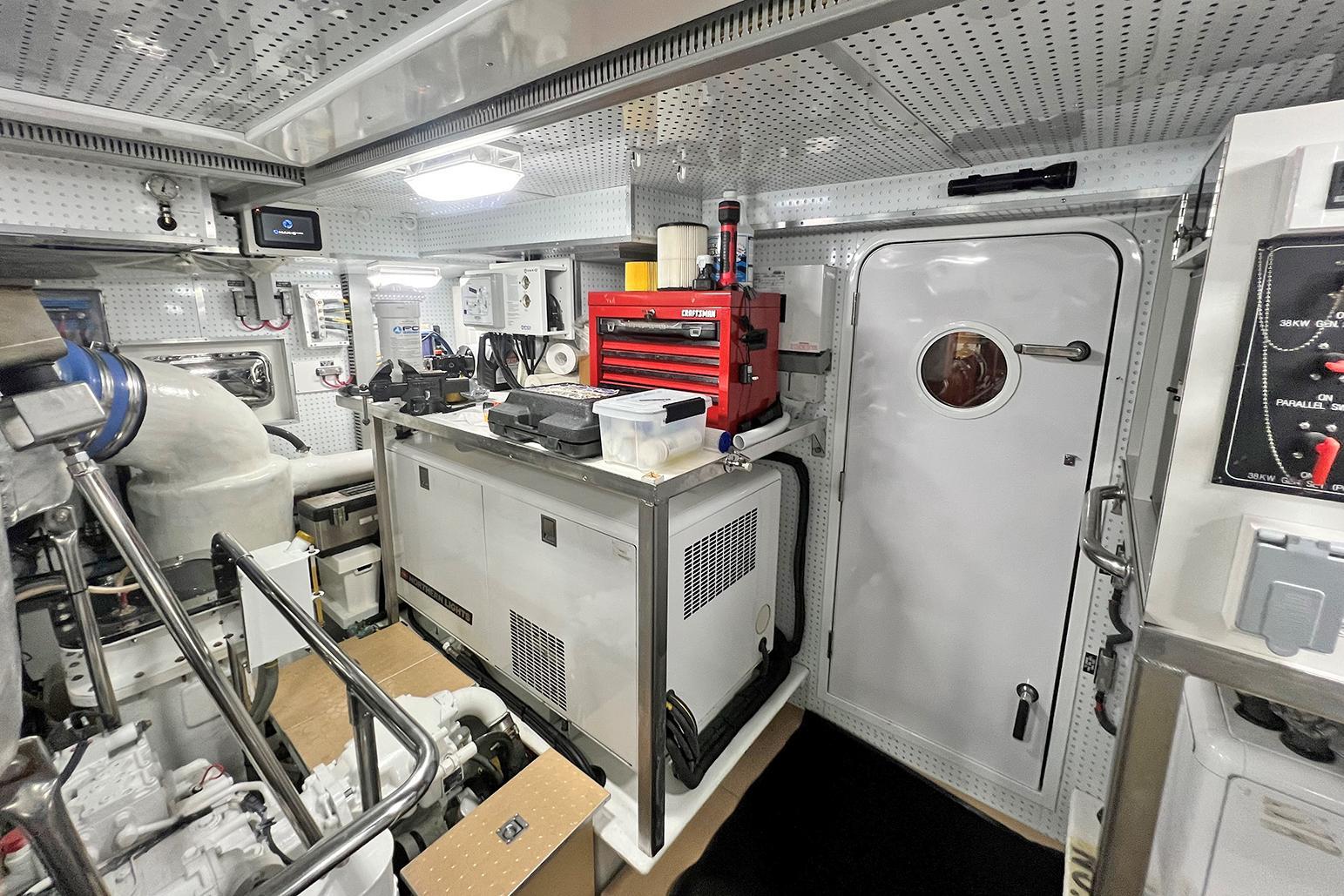

• Northern Lights Generators – two (2) 38kw (60hz) with sound shields
• MarineAir chilled water air conditioning system with electric heat strips and a back up raw water cooling pump
• Two (2) sea chests
• Ball-valve bronze seacocks on all through-hulls below waterline located in sea chests
• Oil change system for engines, transmissions and generators
• Two (2) Charles ISO Boost 100amp isolation transformers
• Two (2) prop shaft brushes
• 4 kw inverter/charger (24v DC to 115v AC 60Hz)
• 4 kw inverter/charger (115/230v AC)
• Two (2) Racor 75/1000 max dual fuel filters with gauges  for main engines
• Two (2) Racor 75/1000 max single fuel filters for generators
• Fuel polishing system
• Fuel management system
• Fireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers
• Four (4) automatic bilge pumps 24v DC and emergency bilge suction on engine
• Fire system and bilge high-water alarm system with warning panel
• Fresh water hose bibb

1. AGM (Absorbed Glass Matt) Batteries in FRP boxes:
2. Two (2) engine banks with two (2) 8D batteries for each bank
3. One (1) house bank with eight (8) 8D batteries with a total 1020 amp-hours (24VDC)

• Four (4) additional AGM house batteries
• Two (2) generator banks with one (1) battery each
• One (1) 24v and one (1) 12v battery charger
• Two (2) battery isolators
• Three (3) 20 gallon water heaters with heat exchanger off one main engine
• Four (4) 24v DC blowers
• 316 Stainless steel safety rails around engines
• Work bench space
• Fresh cold water faucet and sink
• Two watertight bulkheads
• Watertight aluminum engine room doors with sight windows
• One (1) 18k BTU air handler
• LED overhead lighting

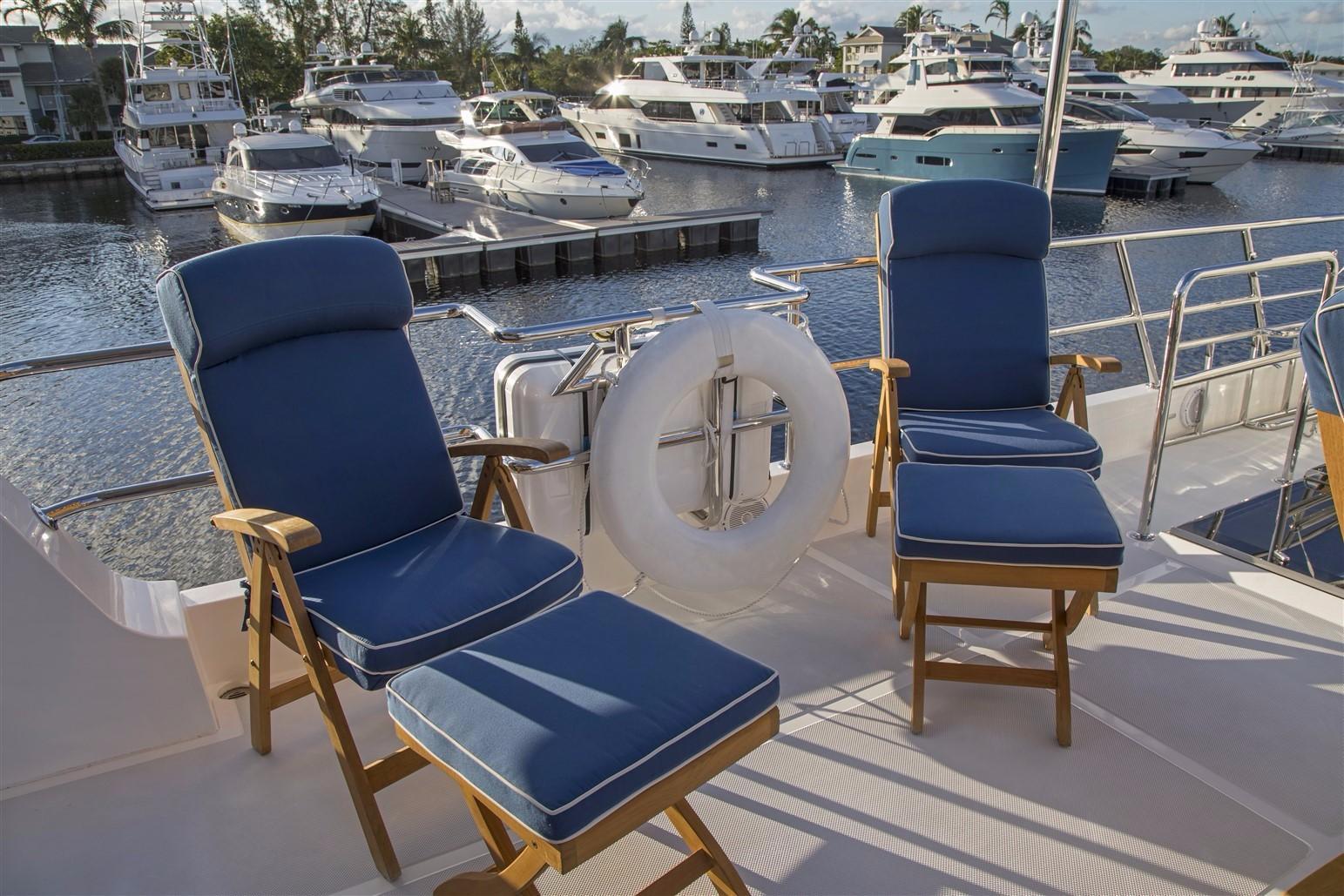

• Deck with grey non-skid surface
• 316 Stainless steel hand rails
• Deck box on port side
• Cabinets port and starboard for wash basin, new refrigerator, ice maker, with new quartz stone countertops
• Gaggenau electric BBQ grill with a 3-piece windshield (inoperable)
• Stamoid cover for BBQ grill
• Removable stainless steel ladder from boat deck to hardtop
• 115v AC GF outlet with recessed box on the end of the boat deck
• Two (2) LED working lights with FRP covers on radar arch
• 1000KGS/2200lb aluminum painted davit with 4 way hydraulic control with rotating base, luff, lift, pendant switch, 13.7’ telescoping arm and a wireless remote
• Swing gates forward of optional dinghy with 1 ½” stainless steel pipe
• Glendinning plug in receptacle
• Ocean ISO 8-man life rafts mounted port and starboard
• Awning support poles
• Hinged mast
• 15' 2017 Walker Bay Generation 450 tender with 75 Evinrude Etec, VHF radio with AIS system, Garmin 741XS, Airmar P319 transducer and Polk stereo with Sirius XM

• ABT Trac 38hp hydraulic bow and stern thrusters
• ABT Trac 300 Star Zero speed stabilizer system with 9.5 sq. ft. fins and 15hp 230v AC hydraulic pump
• Northern Lights uplift water separator exhaust
• Underwater exhaust system with bypass and FRP mufflers
• Copper bonding system to all underwater fittings with zinc anodes
• Two (2) Seatorque enclosed drive shaft systems and two (2) Nibral propellers
• Rigid fresh water pipes and color coded copper fuel lines
• Stainless steel struts with bearings
• Headhunter 24v DC and Mach-5 115v AC fresh water pumps with accumulator tanks
• Two (2) 24v DC automatic shower sump systems with external pump
• Accessible wiring raceway throughout
• Two (2) Glendinning hand-held remotes
• Air compressor with outlets on bow, stern, and engine room

• One (1) holding tank with a max capacity of 250 US gallons (946 lts) with two (2) macerator/discharge pumps. One (1) is wired and plumbed for backup redundancy
• One (1) stainless steel water tank with a max capacity of 500 US gallons (1893 lts)
• Three (3) aluminum fuel tanks with a total capacity of 4,000 US gallons (15142 lts)
• One (1) grey water tank with a total capacity of 120 US gallons (454 lts) with sewage pump and tank monitor
• Lexan sight gauges on all tanks
• Inspection and cleaning ports on all tanks
• 115v AC hot water circulating pump
• 1800 GPD Max Q water maker
• DockMate water softening system
• Headhunter sewage treatment system
• Fuel fills built into house sides in FRP cabinet

• Sliding door entrance from aft deck
• Fixed windows in house sides with medium 3/8” tinted tempered safety glass
• Valance over windows with LED rope lighting
• LED rope lighting at valance
• Access hatches to allow for engine removal
• Vinyl headliner
• Two (2) high-gloss Cherry grab rails on ceiling and high-gloss coffering
• One (1) free standing fixed custom coffee table
• Entertainment center cabinet starboard with a TV lifter system and additional storage cabinets
• Bar on the starboard aft side with a new Scotsman ice maker
• Two (2) end tables (built in)
• Custom sofa with storage
• Air conditioning control panel
• Cherry cabinetry and lockers
• All salon tops are high-gloss burl
• Burl inset for posts between windows
• Pre-manufactured hand-scraped walnut flooring with a maple border
• Cherry wall paneling with satin finish
• Drawers with full extension guides
• Cherry cabin doors and cabinet doors
• Custom hardware and latches
• Electric wall heater
• LED overhead lighting

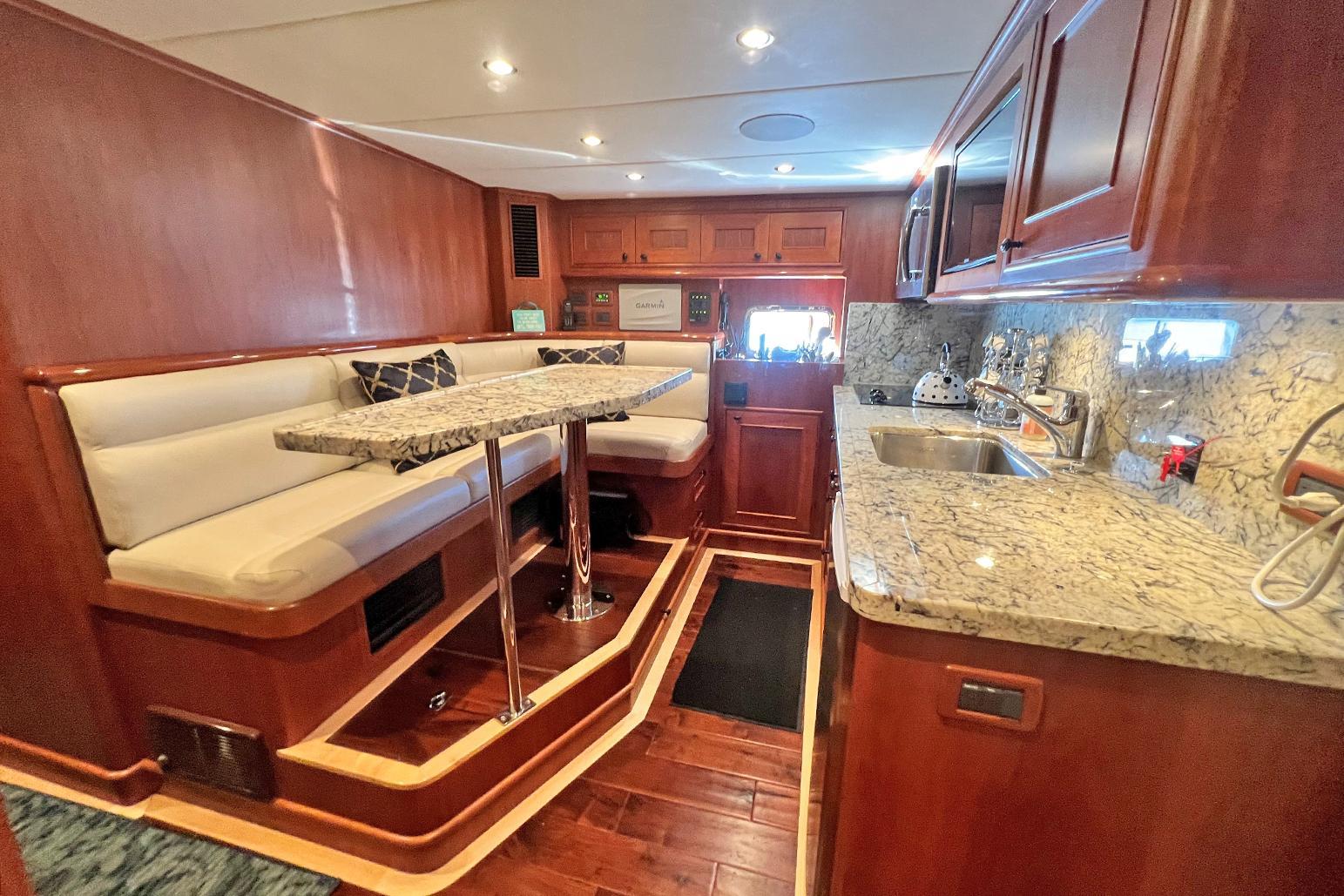

• Large country-kitchen with center island
• Opening window
• Settee forward with custom-made table
• Granite countertops with stainless steel under mount sinks
• Drawer for soap and sponges in front of the sink
• Hansgrohe faucet with pull out spray
• Cherry cabinets and cabinet doors
• Custom hardware and latches
• Cherry wall paneling with satin finish
• Drawers with full extension guides
• Cherry cabin doors and cabinet doors
• Electric wall heater
• Pre-manufactured hand-scraped walnut flooring with a maple border
• LED overhead lighting
• Appliances with raised wood panels:


1. Kitchenaid refrigerator
2. Miele dishwasher with stainless interior
3. Bosch wall over
4. Bosch cooktop
5. Bosch microwave
6. Insinkerator garbage disposal with switch
7. GE Monogram trash compactor
8. U-Line wine cooler

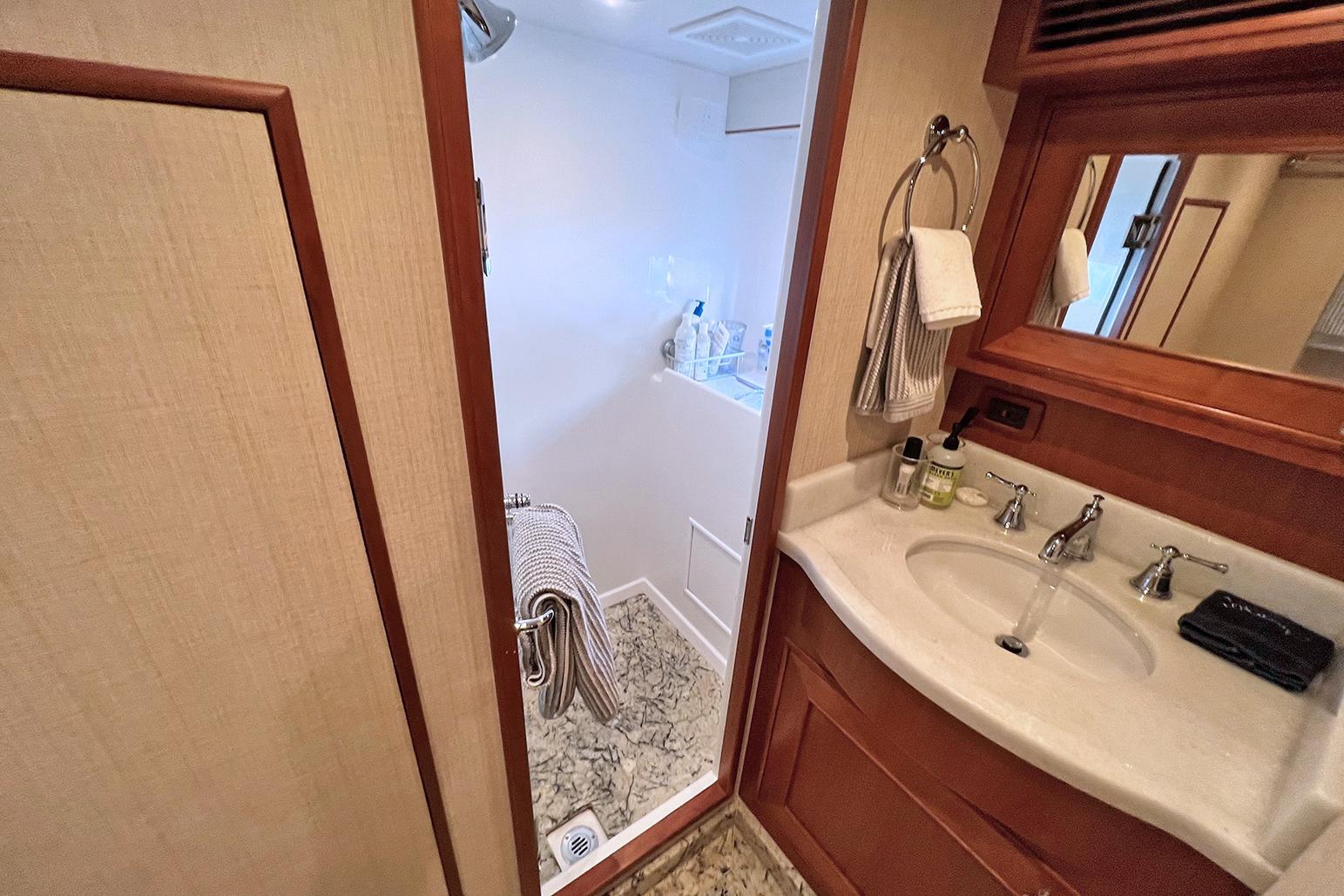

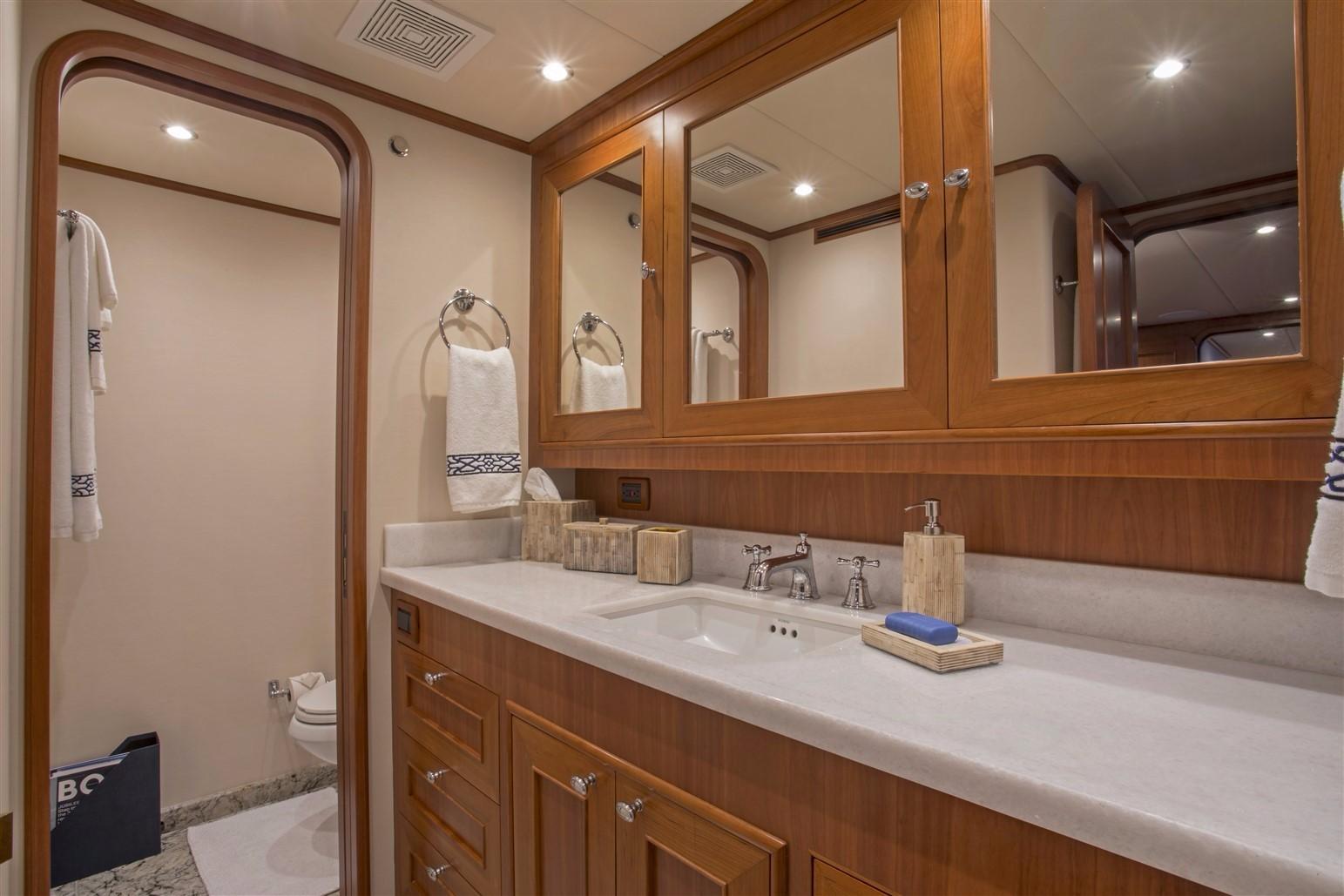

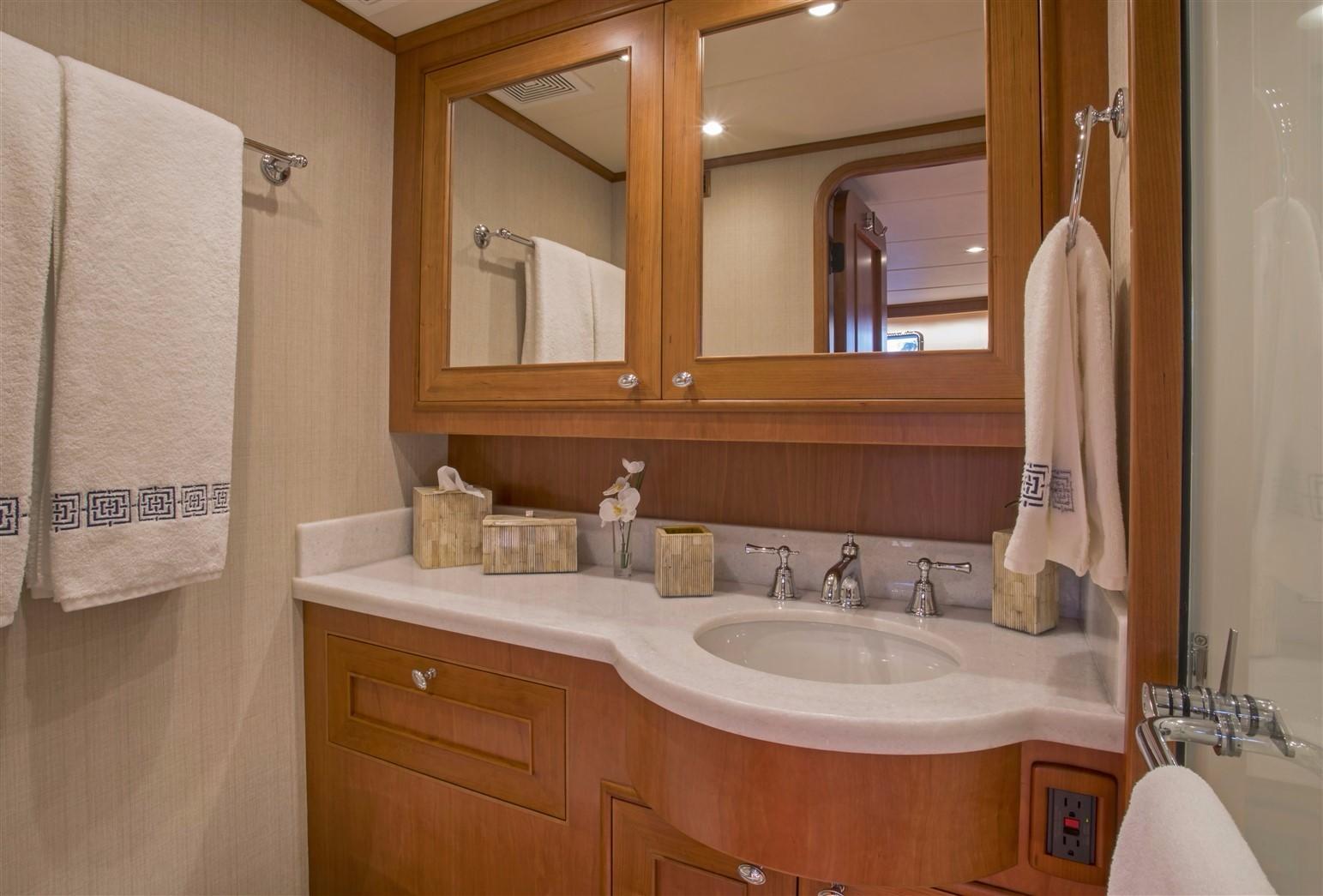

• Granite countertop with white Kohler under-mount sink
• THG widespread faucet at sink
• Mirror with a high-gloss wood frame
• Storage cabinet under sink
• Wallcovering
• Cherry cabin doors and cabinet doors
• Custom hardware and latches

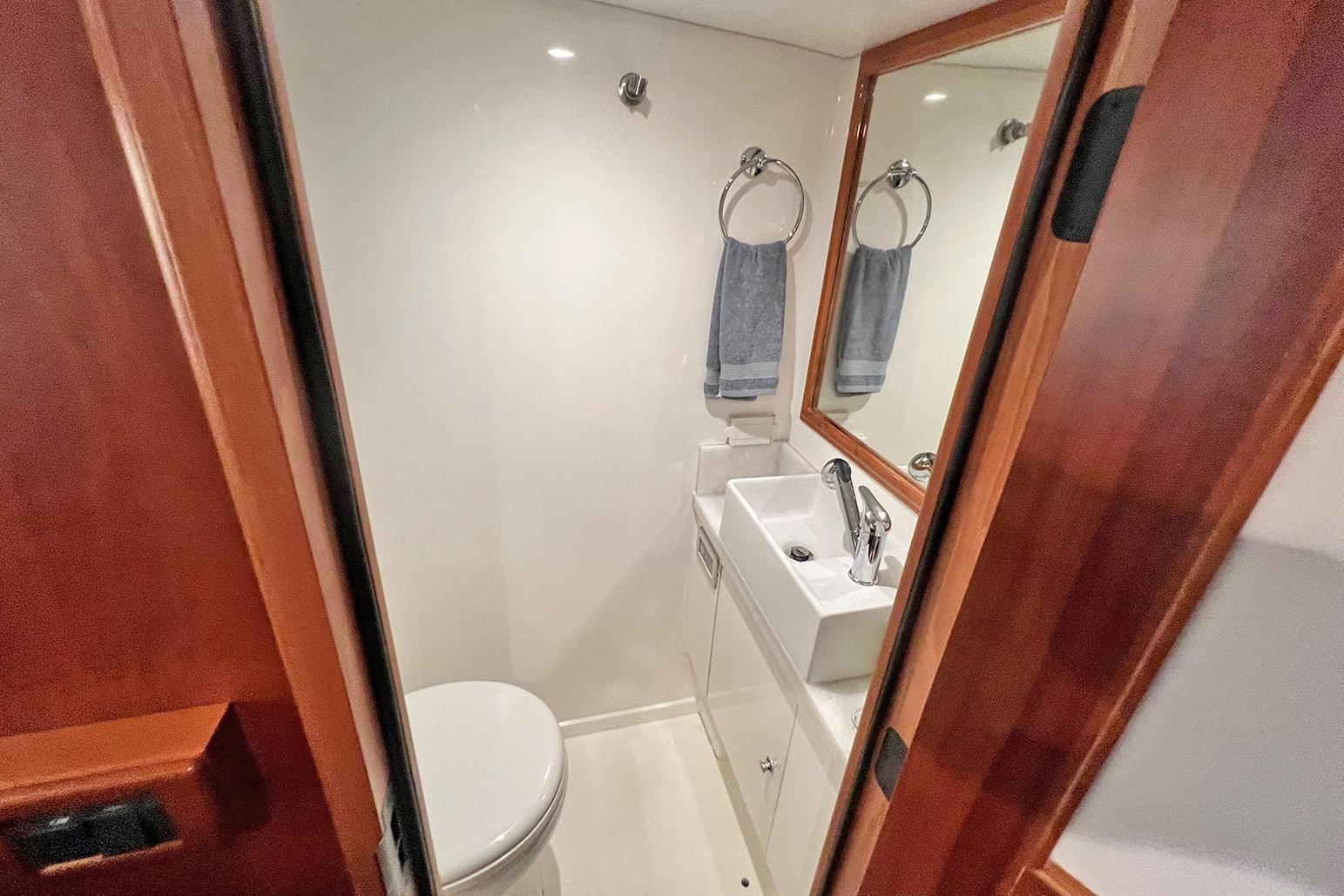

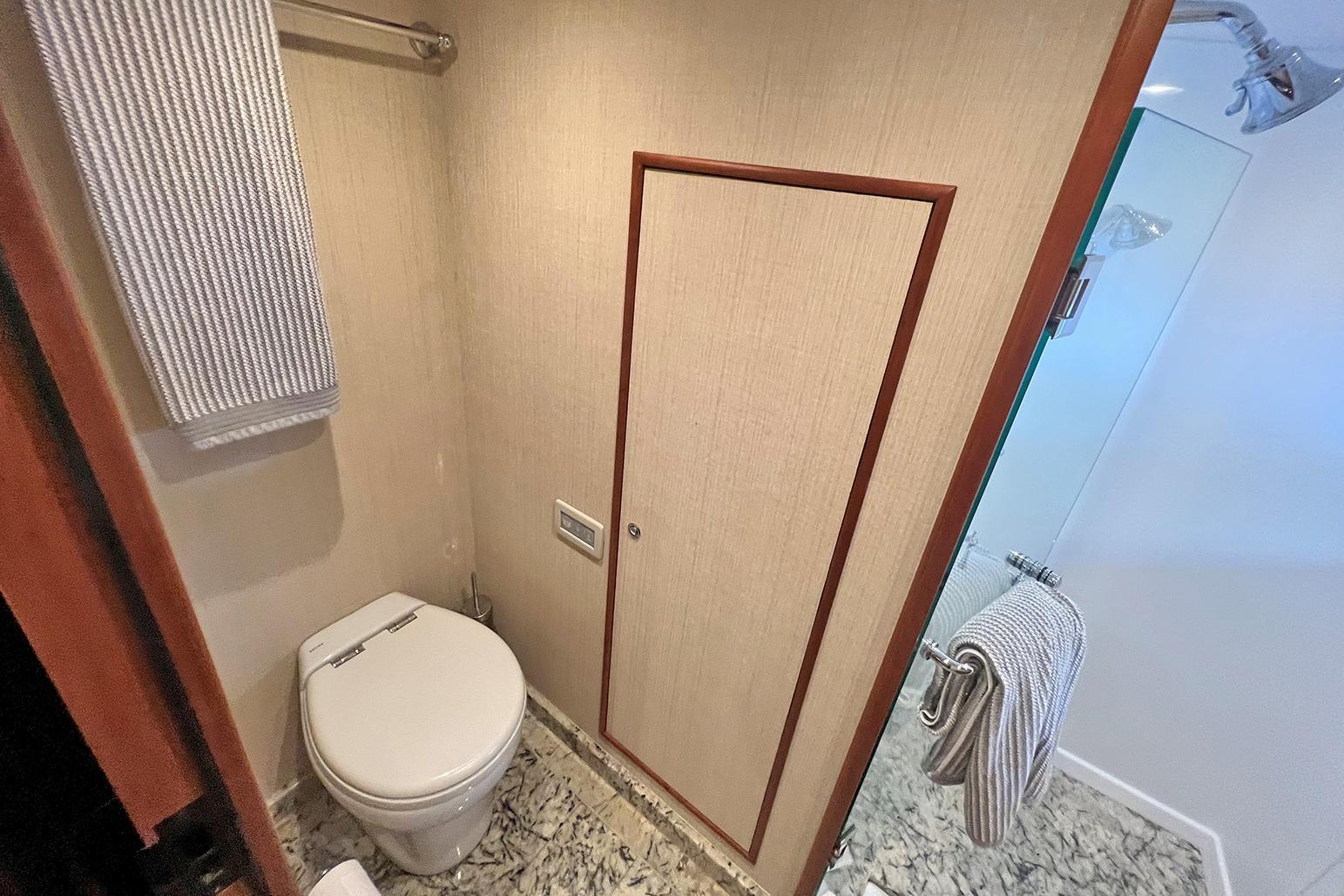

• Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
• Ventilator blower
• Exterior door to side deck
• Honed stone flooring
• LED overhead lighting

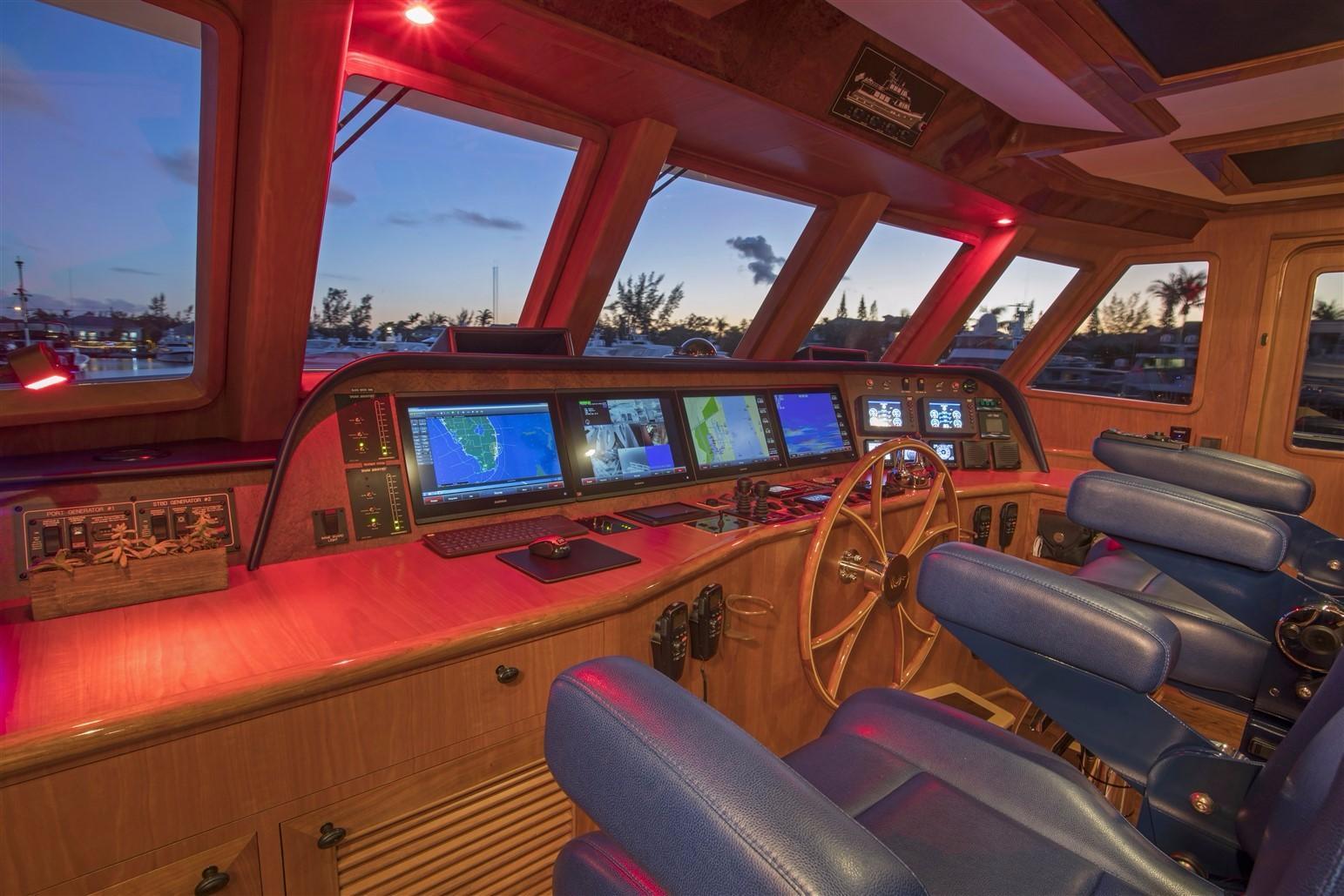

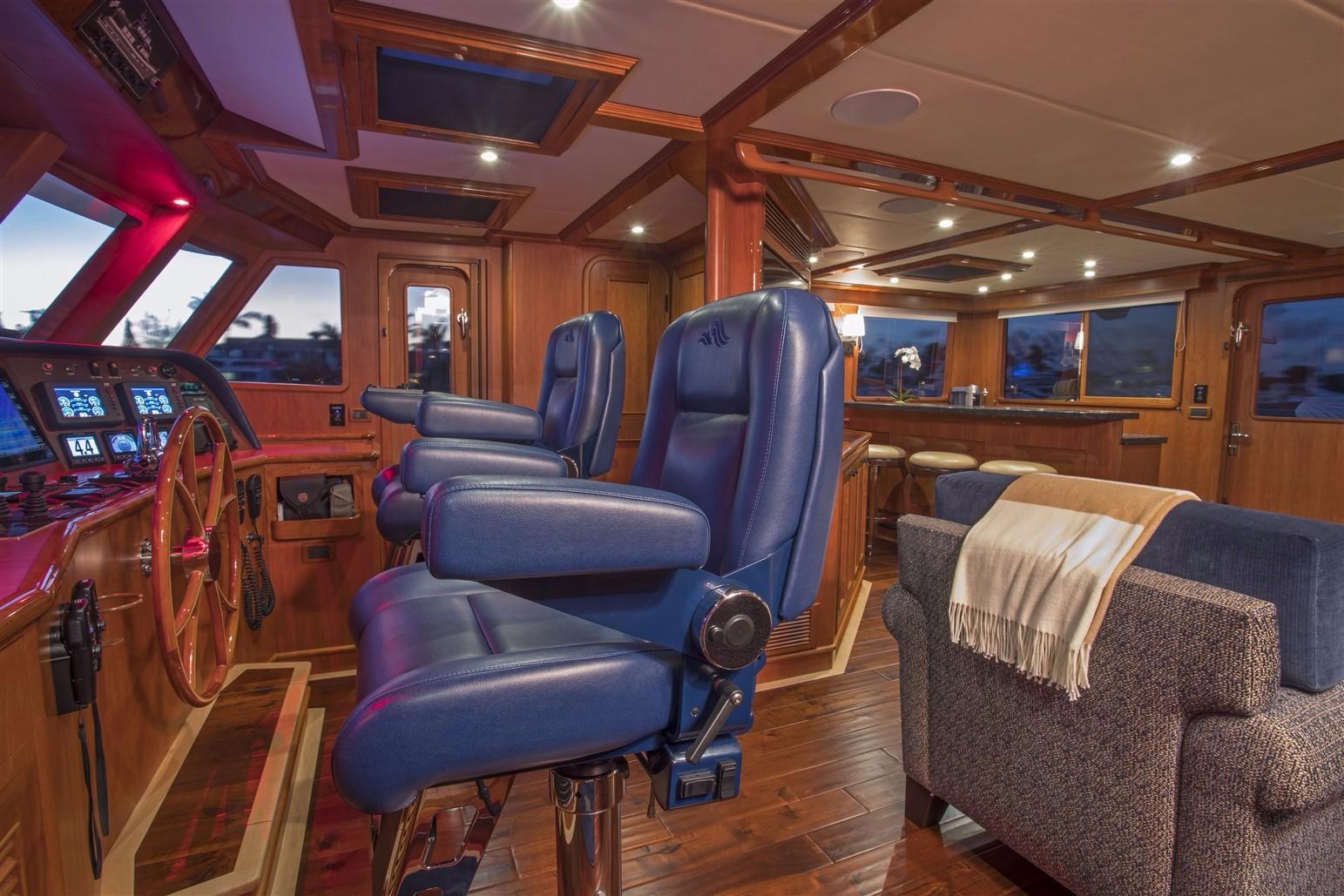

• Exclusive Deluxbridge™ full beam-width command center
• Custom settee with storage with high-gloss burl on top behind settee
• Bar on starboard side with a U-line wine cooler and a new ice maker
• High-gloss burl topped AV cabinet
• High-gloss Cherry top table
• One (1) chart light
• LED red and white bridge lights
• Binocular box
• Two (2) Stidd helm seats, model 500NX Slimline with ultraleather and deluxe chrome bases
• Custom high-gloss Outer Reef wood steering wheel at helm
• Teleflex hydraulic power assist steering system
• Engine display screens
• Overhead burl electronics console
• Wiring routes to facilitate equipment installation
• Main electrical distribution panels with gauges and circuit breakers for AC and DC
• Alarm and advisory panel
• Transom doors on AC, DC and advisory panels
• Glendinning electronic engine controls with back up gear and throttle with synchronizer
• 5” magnetic compass
• Five (5) stainless steel Exalto dual speed (intermittent) self-parking windshield wipers (recently rebuilt) with wash down system
• ½” Clear tempered glass in forward facing windshields
• Webblon covers for wheelhouse windows
• Windows are fixed with FRP recessed frames - no FRP trim around for easy removal and installation of glass
• Vinyl headliner
• High-gloss coffering with high-gloss linear wood handrail
• Control for bow thruster
• Air conditioning control panel
• Electric wall heater
• AC system remote monitor panel
• Generator digital control panel
• Two (2) 24v to 12v DC-DC converters with 12v battery back-up system
• Carlisle & Finch Xenon 200 white powder-coated searchlight with dual station controls
• Kahlenberg triple trumpet air horn with compressor
• Five (5) Aquasignal navigation lights in accordance with appropriate collision regulations
• Windlass up/down switch and control circuit breaker
• Bilge pump control on advisory panel
• Equipment running advisory panel
• Stairway with Bolon inlay down to the country kitchen with high-gloss handrail
• Weathtertight door opening to boat deck with phantom screens
• Weathtertight doors port and starboard to upper Portuguese bridge with phantom screens
• Upper teak Portuguese bridge with forward seating with Stamoid covers
• Pre-manufactured hand-scraped walnut flooring with a maple border
• LED overhead lighting

• Granite countertop with white Kohler under-mount sink
• THG faucet at sink
• High-gloss wood framed mirror
• Storage cabinet under sink
• Wallcovering
• Cherry cabin doors and cabinet doors
• Custom hardware and latches
• Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
• Ventilator blower
• Honed stone flooring with 3" polished mosaic border
• LED overhead lighting

• Curved stairway with Bolon inlay from galley
• Cherry wall paneling with satin finish
• Cabinet with stackable GE washer and dryer
• Fold out ironing board in laundry area
• Granite on laundry counter
• Storage under first two steps of the stairwell below
• Access doors to staterooms
• Pre-manufactured hand-scraped walnut flooring with a maple border
• LED overhead lighting

• King size berth with a custom mattress with drawer storage underneath and burl on berth surround
• LED rope lighting under the bed and at valance
• Burl on face of bed canopy
• Two (2) cedar lined walk-in closets
• Six (6) built in cabinets
• Automatic interior lights in lockers
• Built-in vanity desk on starboard side of the stateroom with drawers
• Additional drawers on port side of the stateroom for extra storage
• Drawers with center guides and stops
• Door stops and holders
• Wood-framed full height mirror on the wall
• Vaughan reading lights
• Four (4) oversized 24" x 10" CE-approved portlights with stainless steel studs for removable deadlight covers
• Air conditioning control panel
• Nightstand tables with two drawers each with high-gloss burl on table tops and cabinet faces
• Drawers with full extension guides
• Cherry cabin doors and cabinet doors
• Custom hardware and latches
• Pre-manufactured hand-scraped walnut flooring with a maple border
• Coin dot floor under sole with hinges and pneumatic lifting system
• Cherry wall paneling with satin finish
• Electric wall heater
• Dyson V8 Absolute vacuum cleaner
• LED overhead lighting

• Ensuite head with shower
• Clear tempered glass shower door with towel bar
• Molded white FRP shower with honed granite floor
• DXV hand shower with hose and soap dish
• Ventilator fan in shower
• Granite countertop with a white Ronbow under-mount sink
• DXV widespread faucet at sinks
• Wood framed mirror with medicine chest
• Storage cabinet under sink
• Wallcovering
• Drawers with full extension guides
• Cherry cabin doors and cabinet doors
• Custom hardware and latches
• Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
• 24v DC ventilator blower
• Honed stone floor with 3" polished border
• Separate compartmented toilet area with CE-approved portlight
• LED overhead lighting

• 316 Stainless steel CE-approved skylight
• Tapered queen-size hinged berth with a custom mattress with storage drawers underneath
• Two steps on each side of the berth for easy access
• LED rope lighting under the bed and at valance
• Bookshelves on port and starboard hull sides
• High-gloss burl cabinetry tops
• Two (2) cedar lined hanging lockers
• Automatic interior lights in lockers
• Two (2) Vaughan reading lights
• Air conditioning control panel
• Electric wall heater
• Cherry wall paneling with satin finish
• Drawers with full extension guides
• Cherry cabin doors and cabinet doors
• Custom hardware and latches
• High-gloss framed full-height mirror on the back of the cabin door
• Pre-manufactured hand-scraped walnut flooring with a maple border
• LED overhead lighting

• Ensuite head with shower
• Clear glass shower door with towel bar
• Molded white FRP shower with honed granite floor
• DXV hand shower with hose and soap dish
• 24v DC  ventilator blower
• Granite countertop with white Kohler under-mount sink
• DXV faucet at sink
• Wood framed mirror with medicine chest
• Storage cabinet under sink
• Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
• Honed stone floor with 3" tile border
• Wallcovering
• Drawers with full extension guides
• Cherry cabin doors and cabinet doors
• Custom hardware and latches
• LED overhead lighting

• Two (2) CE-approved portlights with removable insect screens
• Two (2) twin berths with custom mattresses with burl birth surrounds with storage drawers underneath
• One (1) built-in nightstand with a high-gloss burl top
• LED rope lighting at valance
• One (1) cedar lined hanging locker
• Automatic interior light in locker
• Cherry wall paneling with satin finish
• Drawers with full extension guides
• Cherry cabin doors and cabinet doors
• Custom hardware and latches
• Door stops and holders
• Full-height mirror on the back of the cabin door
• Air conditioning control panel
• Electric wall heater
• Two (2) Cantalupi chrome reading lights
• Pre-manufactured hand-scraped walnut flooring with a maple border
• LED overhead lighting

• Ensuite head with shower
• Clear glass shower door with towel bar
• Molded white FRP shower with honed granite floor
• DXV hand shower with hose and soap dish
• 24v DC ventilator blower
• Granite countertop with white Kohler under-mount sink
• DXV faucet at sink
• Wood framed mirror with medicine chest
• Storage cabinet under sink
• Headhunter 24v electric white toilet with sanitary hose for all discharge plumbing
• Honed stone floor with a 3" polished border
• Wallcovering
• Drawers with full extension guides
• Cherry cabin doors and cabinet doors
• Custom hardware and latches
• LED overhead lighting

• Two (2) CE-approved portlights with removable insect screens
• Port crew cabin with one (2) twin berths with custom mattresses with storage drawers underneath with burl on berth surround
• Electric wall heater in both cabins
• Wet head in the port crew cabin
• Starboard captain's crew cabin with one (1) queen berth with a custom mattress with storage drawers underneath with burl on berth surround
• One (1) hanging locker with automatic interior light
• Cherry wall paneling with satin finish
• Drawers with full extension guides
• Cherry cabin doors and cabinet doors
• Custom hardware and latches
• LED rope lighting under bed
• Air conditioning control panel
• Storage space behind galley with storage cabinets
• Stackable GE washer and dryer
• Pre-manufactured hand-scraped walnut flooring with a maple border
• Staircase with Bolon inlay leading up to the salon
• Steps leading to transom
• LED overhead lighting

• One (1) CE-approved portlight with removable insect screens
• L-shaped settee on raised platform
• Granite table with single 316 stainless steel pedestal
• Granite countertops with a stainless steel Elkay under-mount sink
• Drawer for soap and sponges in front of the sink
• Chrome Grohe Europlus II faucet with pull out spray
• Cherry cabinets and cabinet doors
• Cherry wall paneling with satin finish
• Drawers with full extension guides
• Cherry cabin doors and cabinet doors
• Custom hardware and latches
• Pre-manufactured hand-scraped walnut flooring with a maple border
• Electric wall heater
• LED overhead lighting
• Appliances:

1. Summit undercounter refrigerator
2. GE electric cooktop
3. GE built-in convection microwave
4. Danby upright freezer

• Clear glass shower door with towel bar
• Molded white FRP shower with honed granite floor
• One (1) CE-approved portlight with removable insect screen
• DXV hand shower with hose and soap dish
• 24v DC ventilator blower
• Granite countertop with white Kohler under-mount sink
• DXV faucet at sink
• Wood framed mirror with medicine chest
• Storage cabinet under sink
• Tecma Marine 24v electric white toilet with sanitary hose for all discharge plumbing
• Honed stone floor with 3" polished border
• Wallcovering
• Drawers with full extension guides
• Cherry cabin doors and cabinet doors
• Custom hardware and latches
• LED overhead lighting

• Four (3) Garmin GPSMAP-8617 Sunlight 17" GPS / plotter touch-screen dsplays and GPS antennas
• Charts: St. Lawrence Seaway from Lakes to exit, all Great-Lakes to Hudson River link, New York & Hudson to Barge Canal link, St. John, New Brunswick to Cape Cod, MA, Boston, MA to Norfolk, VA, N. Florida to Norfolk, VA, all Bahamas & E. Coast Florida to Key West, Brownsville, TX & all Gulf to Key Largo, FL, Southern Bahamas, all Hispaniola and Jamaica, all Hispaniola Is., US / Brit. VI, P.R., all Caribbean Islands, all Venezuela coast, SW Caribbean, Yucatan and Central America with Canal to Barranquilla, and Colombia
• Two (2) Garmin 7612 Sunlight 12.1" GPS / PLOTTER touch-screen displays with internal GPS
• Furuno PG-700 heading sensor
• Garmin Wi-Fi link adapter for Garmin's iPAD & iPhone navigation app
• Two (2) Garmin x-HD2 12 KW 6-foot open array radar antennas
• Garmin GCV-10 black box, side-view / down-view "CHIRP" sounder
• Garmin GSD-24 HD range black box color sounder
• Two (2) Garmin GMX-52 SIRIUS marine weather receivers
• GARMIN GHC-20 reactor autopilot
• Garmin AIS-600 black-box AIS system
• Garmin NMEA-2000 instruments
• Two (2) Garmin 300 black-box DSC-VHF radios with GPS-in
• KVH V-7 IP "V-SAT" broadband satellite hi-speed data and phone terminal
• KVH ipMobilecast media server / storage unit
• ACR "Global-Fix" iPRO GPIRB with internal GPS
• Panasonic KX-TDA-50G hybrid IP telephone and intercom system
• Shakespeare Super-HALO cellular amplifier system
• CradlePoint IBR-1100 LP6 cellular 3G-4G LTE mobile data terminal
• EC-HP "Marina to Yacht" WI-FI connection system
• MBR-400 marine broadband router and data service selector switch
• CCTV system, including swim and aft deck, engine room, side decks, galley, salon and pilothouse
• iPAD user-interface app with full selection and control of all CCTV cameras
• IRIS "NIGHT-RUNNER II" night vision camera
• KVH TracVision HD-7 satellite TV system
• Dockmate handheld controller for thrusters, props, throttles, windlasses, and horn

PILOTHOUSE

• 48" Samsung LED Smart TV
• Samsung 3D/WiFI BluRay/DVD player
• SiriusXM satellite radio receiver
• Marine Sirius Weather antenna
• Marantz AV receiver
• Surround sound speaker system

BOAT DECK

• 28" Samsung LED Smart TV
• JL Audio marine speakers

SALON

• 50" Samsung LED 4K Ultra-HD TV
• Samsung 3D/WiFI BluRay/DVD player
• SiriusXM satellite radio receiver
• Marantz multi-source - multi zone AV receiver
• Niles surround sound speaker system

AFT DECK

• 28" Samsung LED Smart TV
• Weatherproof Niles speaker
• JL Audio marine speakers

FOREDECK / PORTUGUESE BRIDGE / WALK-AROUND DECKS

• JL Audio marine speakers throughout

GALLEY / COUNTRY KITCHEN

• 24" Samsung LED Smart TV
• Samsung BluRay/DVD player
• Niles speakers

MASTER STATEROOM

• 46" Samsung LED Smart TV
• Marantz AV receiver
• Samsung 3D/WiFI BluRay/DVD player
• SiriusXM satellite radio receiver
• Sirius Weather antenna
• Niles suround sound speaker system

VIP STATEROOM

• 29" Samsung LCD TV
• Samsung BluRay/DVD Player
• Niles speakers

STARBOARD GUEST STATEROOM

• 24" Samsung LED Smart TV
• Samsung BluRay/DVD Player
• Niles speakers

CAPTAIN STATEROOM

• 24" Samsung LED Smart TV
• Fusion DVD/CD Blutooth and AM/FM marine stereo
• Sirius satellite radio receiver
• Fusion loudspeaker

CREW STATEROOM

• 19" Samsung LED TV
• Fusion DVD/CD Blutooth and AM/FM marine stereo
• Fusion loudspeaker

CREW GALLEY

• 24" Samsung LED Smart TV
• Fusion DVD/CD Blutooth and AM/FM marine stereo
• Niles speaker
• Fusion loudspeaker

• Brand new bottom paint
• Regular maintenance just completed on both engines and both generators (oil, oil filters, fuel filters, impellers changed)
• New zincs
• Props tuned
• Brand new propspeed on shafts, rudders, props and water inlets
• Stabilizers just dropped and serviced
• New AC water pumps and valves
• New chlorinator plumbing
• Windlasses newly rebuilt
• Windshield wipers rebuilt
• Caulking refreshed
• Engine pumps and seals replaced
• Minor leaks repaired with new gaskets

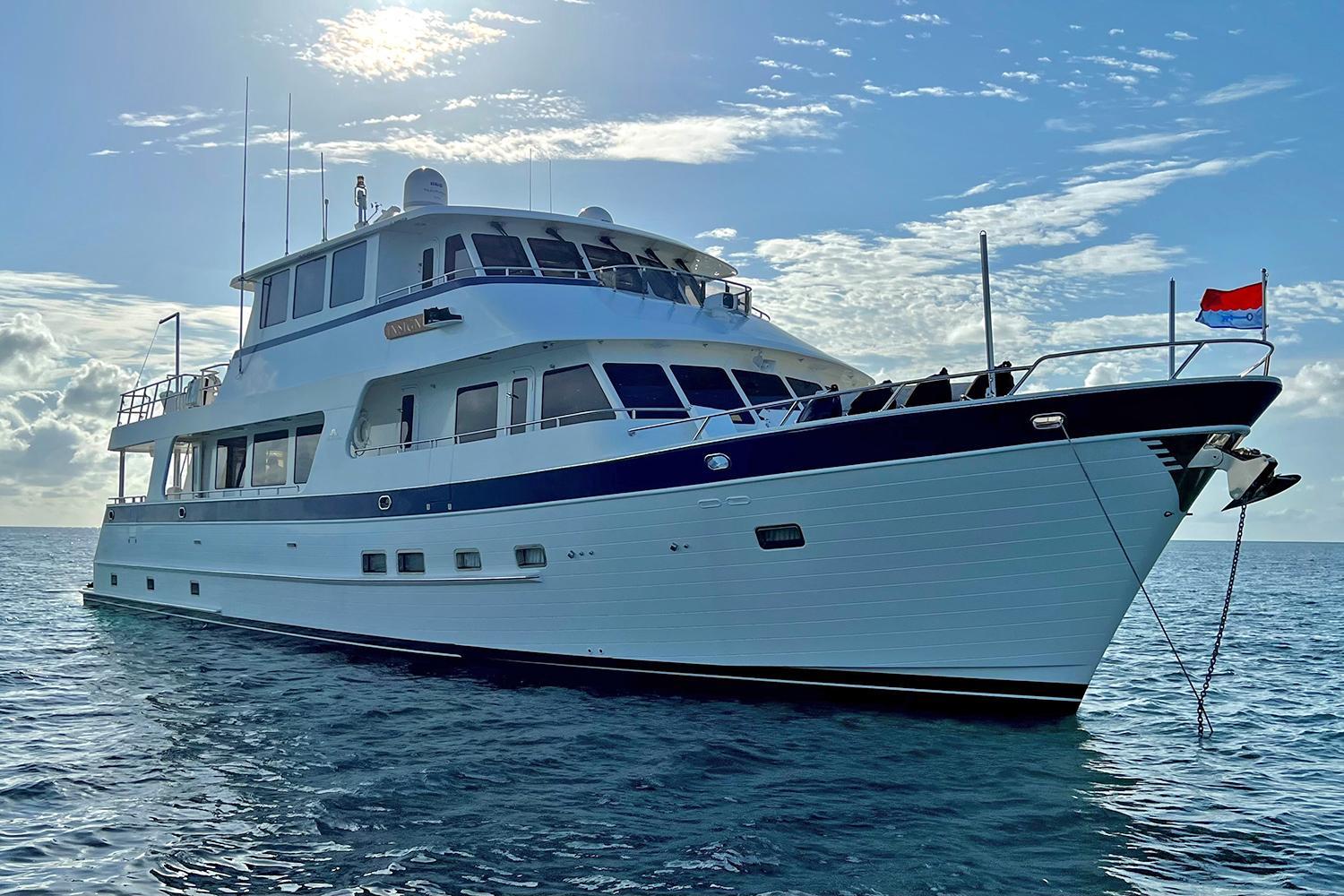

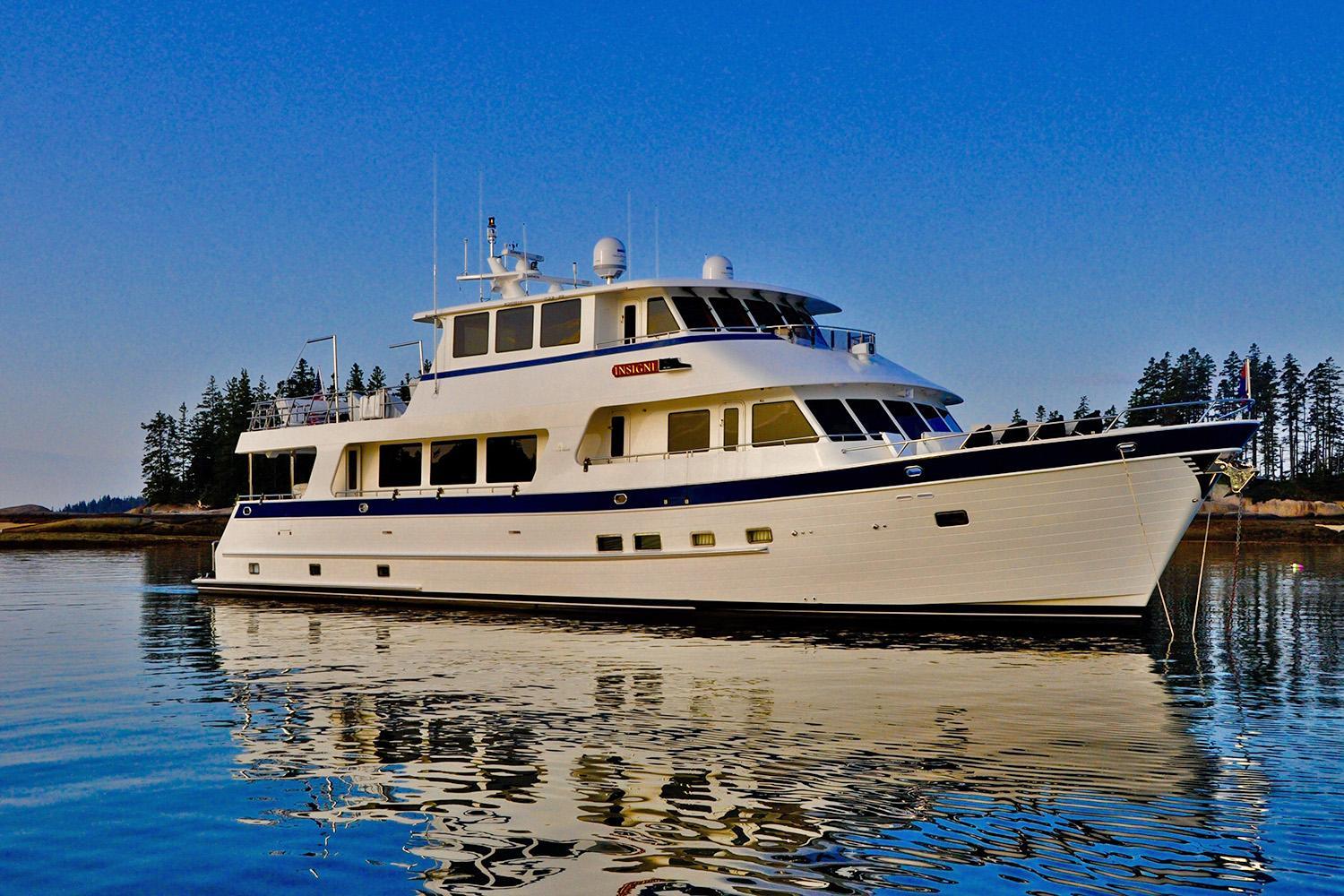

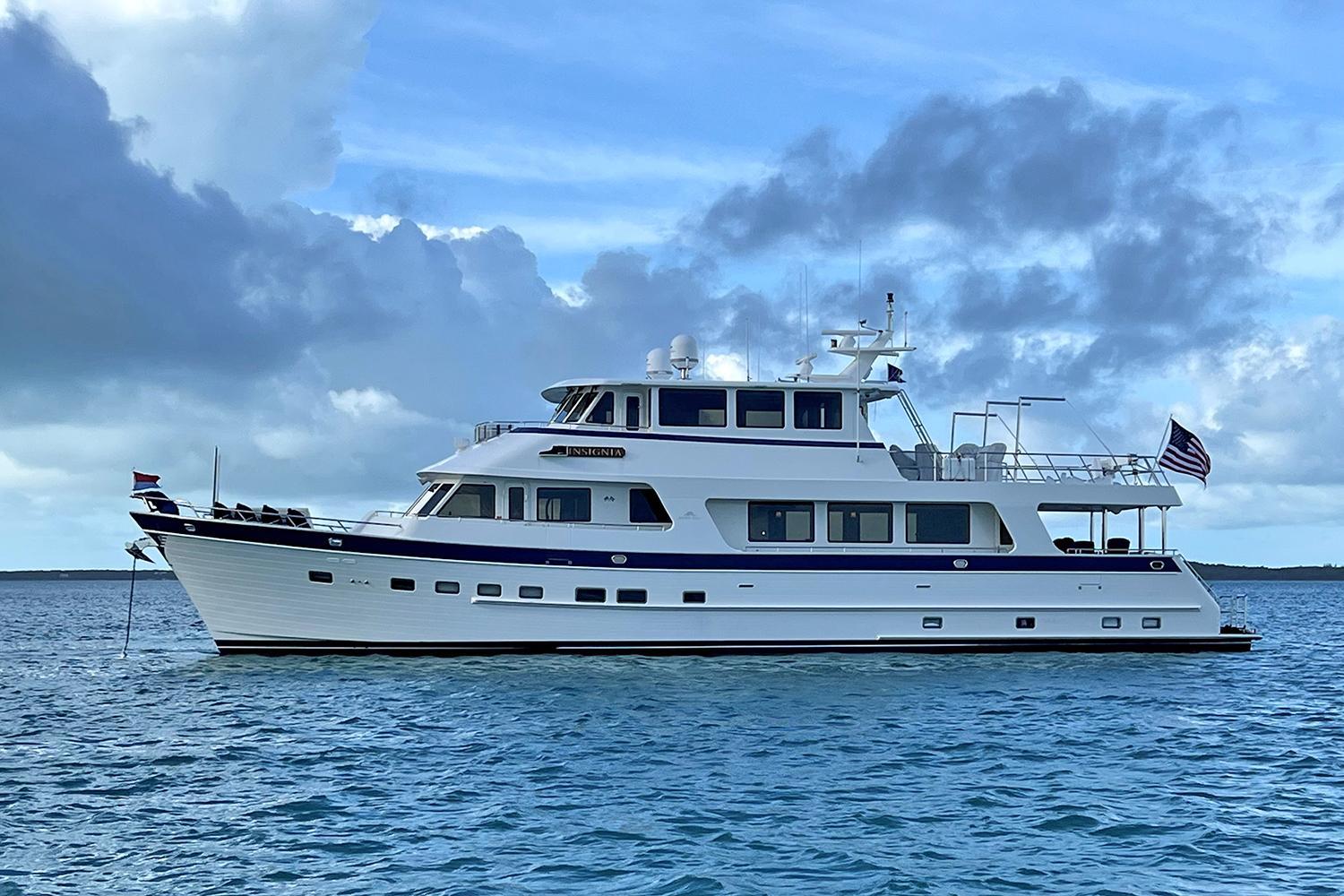

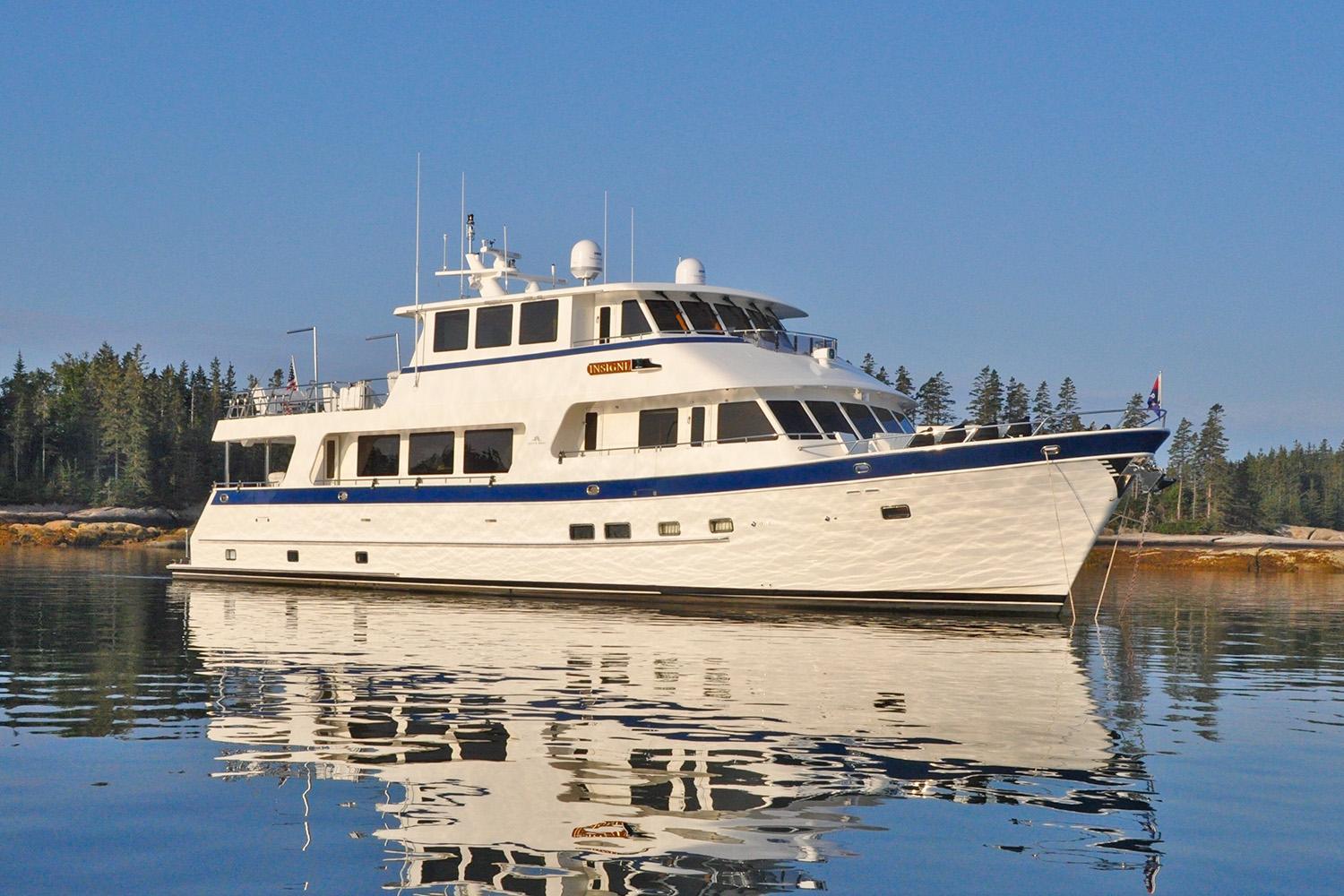

INSIGNIA represents an extraordinary opportunity to purchase a low-hour and heavily optioned 86’ Outer Reef Deluxbridge Skylounge, without the current four year delivery wait time for a sister ship, at well over $8,000,000. Her current owner has maintained the yacht to the highest level. In addition, the volume of this series is equal to yachts in the hundred foot range. INSIGNIA, like all of the Outer Reef Classics, is known for her exceptional high quality construction and excellent seakeeping abilities.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
